Range Rover Classic Rear Door Trim Panel Repair Guide
CHASSIS AND BODY
29
REPAIR

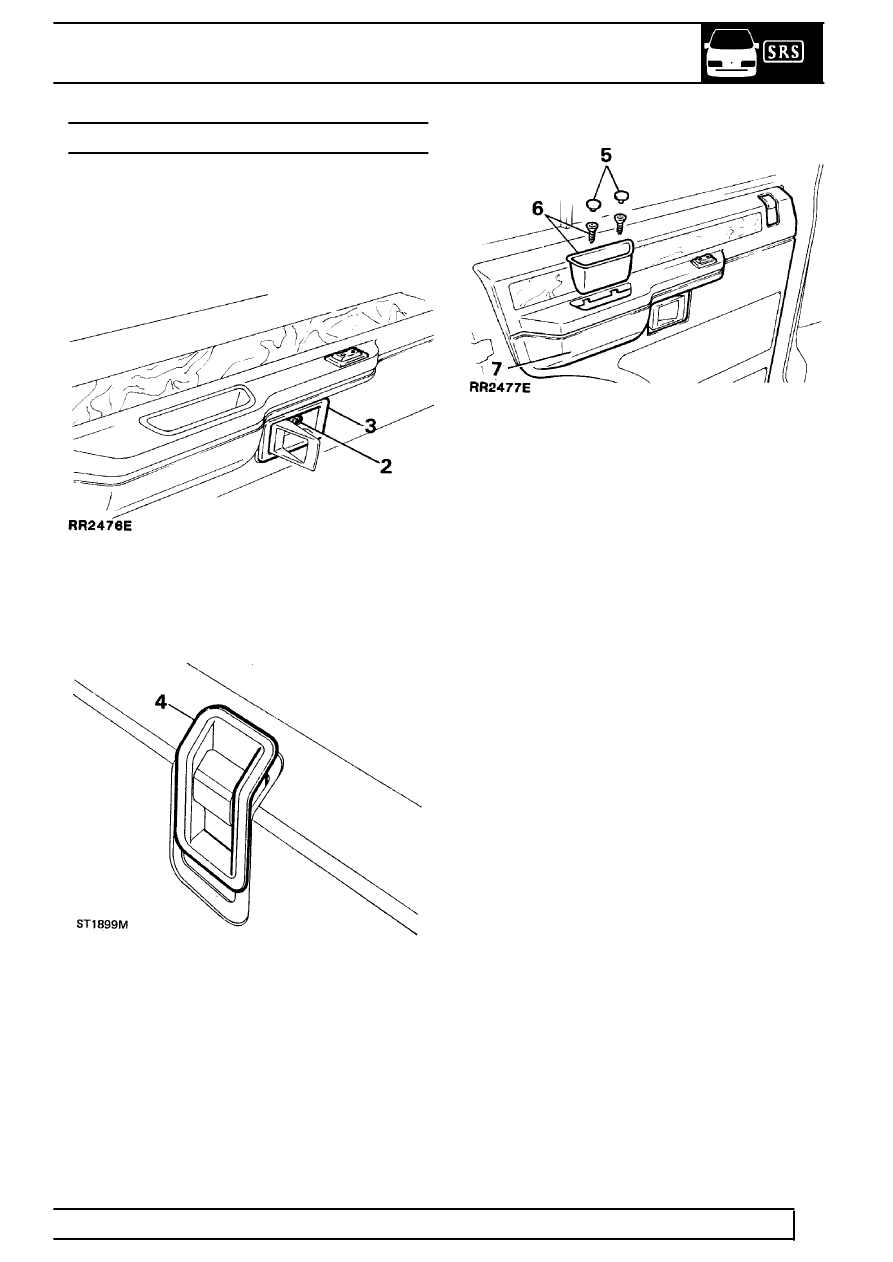

REAR DOOR - TRIM PANEL
Service repair no - 76.34.04/98
Remove
1. Disconnect battery negative lead.
2. Remove screw securing handle surround.
3. Remove surround.
4. Pry door locking button surround from trim panel.
5. Remove two finisher buttons from door pull
pocket to reveal securing screws.
6. Remove screws and withdraw pocket.
7. Pry trim panel away from door.
8. Disconnect electrical plug from window lift
switch.
9. Remove window lift switch.
Refit
10. Reverse removal procedure.
