WIND DEFLECTOR ASSEMBLY
Service repair no - 76.82.31
Remove
1. Open sunroof.
2. Remove two screws accessed through slot in
deflector.
3. Remove wind deflector.
Refit
4. Fit wind deflector assembly.
5. Fit two screws firmly but do not tighten.
Adjust
Adjustment and attachment of deflector is by
same two screws.

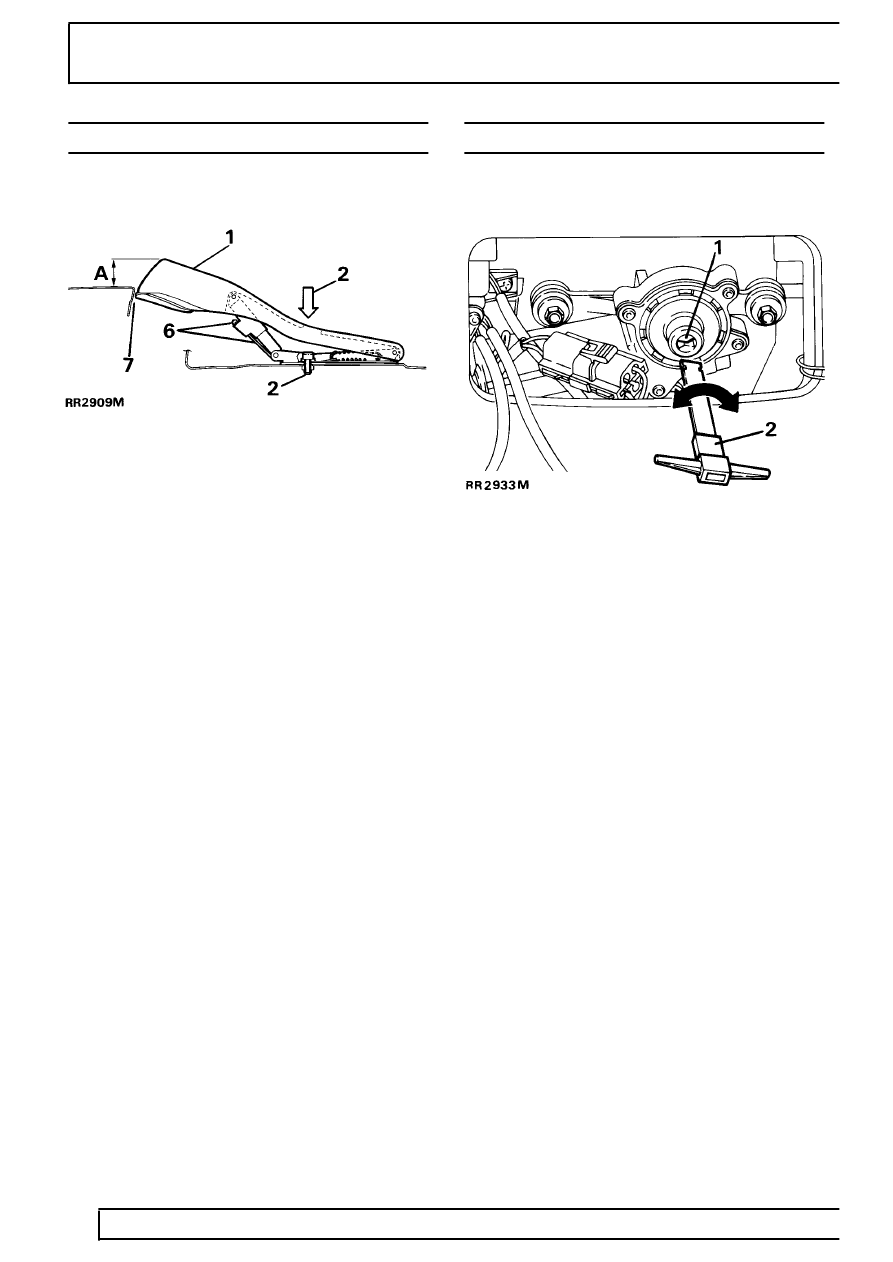

6. Adjust wind deflector rearwards or forwards into
position shown. At same time adjust height ’A’ to
15-20 mm by moving slotted metal strip
rearwards or forwards. Tighten two screws.
7. Ensure deflector does not catch front edge of
roof aperture when operated.
8. Fully check that sunroof operates correctly.
MANUAL OPERATION
If sunroof fails to operate it can be opened or
closed manually with key provided.
1. Remove two turnbuckles to access sunroof
motor spindle located behind switch plate.
2. Engage key into motor spindle and turn to open
or close sunroof panel.
3. After manual operation motor spindle MUST BE
TURNED BACK A QUARTER TURN TO
ENGAGE ELECTRICAL DRIVE MOTOR.
