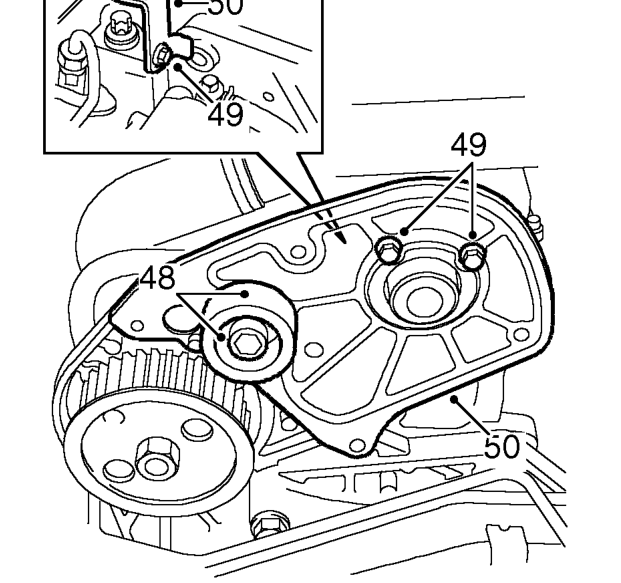

48. Remove Allen bolt securing FIP drive belt tensioner to backplate and remove tensioner.
49. Remove 3 bolts securing FIP timing belt backplate and bracket to cylinder head.
50. Remove backplate and bracket.

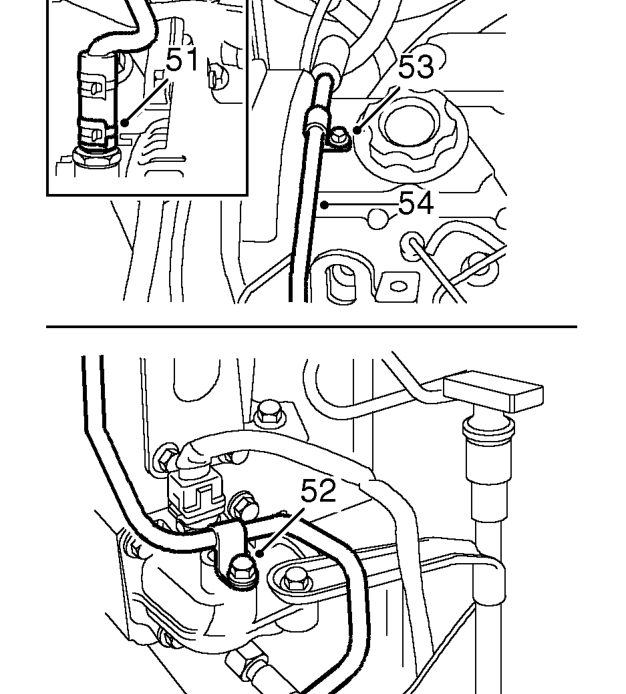

51. Release clip and disconnect hose from brake servo vacuum pipe.
52. Remove bolt securing brake servo vacuum pipe to coolant outlet elbow.
53. Remove bolt securing brake servo vacuum pipe to camshaft cover.
54. Position vacuum pipe aside.
