Replacement (page 3 of 4)

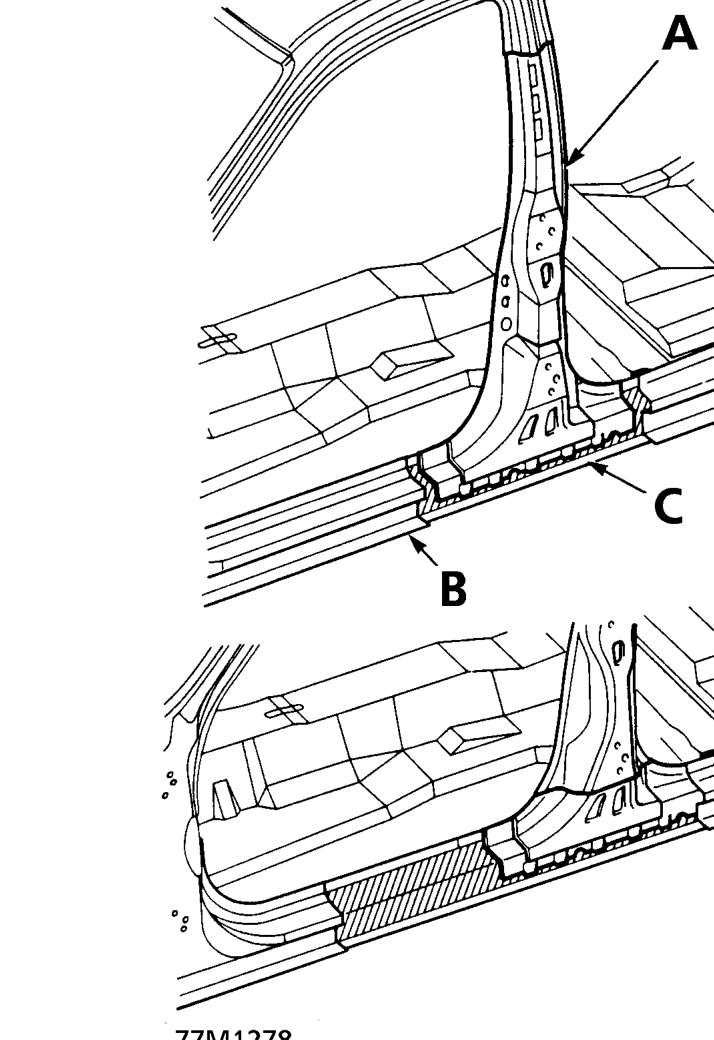

A. Centre pillar stiffener B. Outer panel C. Inside sill

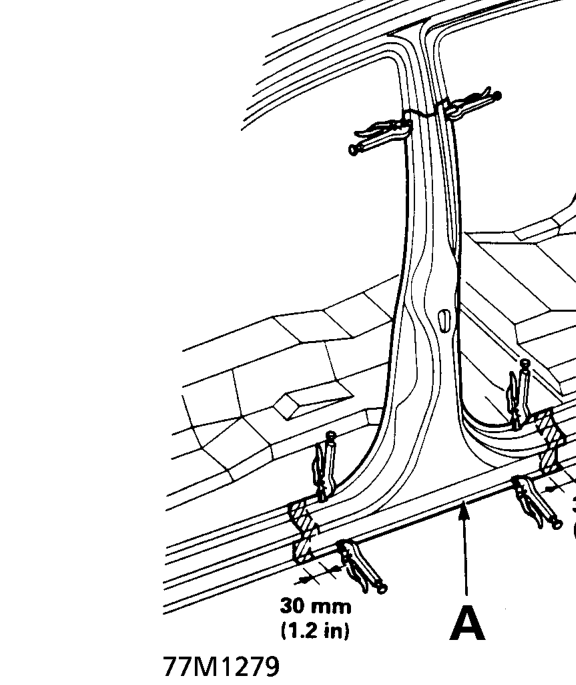

5. Set the repair part.

• Sand off the undercoat from both sides of the welded flange on the repair part.
• Clamp the repair part in place with vice- grips.

NOTE: Apply the spot sealer to the welding surface when spot welding.

• Check the body dimensions

A. Repair Part

6. Tack weld the repair part.

WARNING: To prevent eye injury and burns when welding, wear an approved welding helmet, gloves and safety shoes.

• Remove the vice-grips and install the wing and doors. Check for differences in level and clearance.
