Replacement (page 3 of 5)

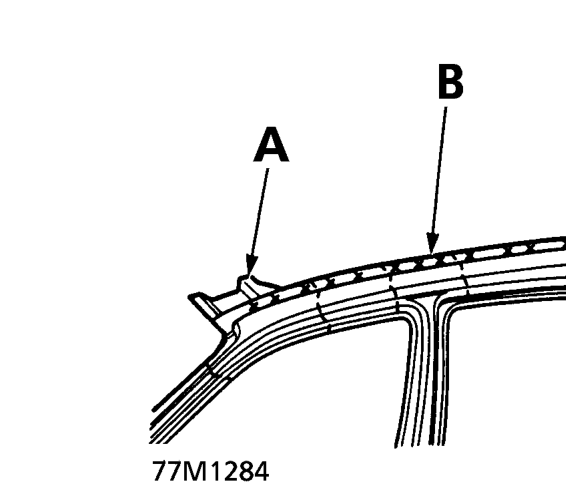

A. Inner Upper Pillar B. Roof Side Rail C. Inner Panel

5. Apply paint to the underside of the new roof panel.

WARNING: Ventilate when spraying paint. Most paint contains substances that are harmful if inhaled or swallowed. • Read the paint label before opening paint container. • Avoid contact with the skin. Wear an approved respirator, gloves, eye protection and appropriate clothing when painting. • Paint is flammable. Store it in a safe place, and keep it away from sparks, flames or cigarettes.

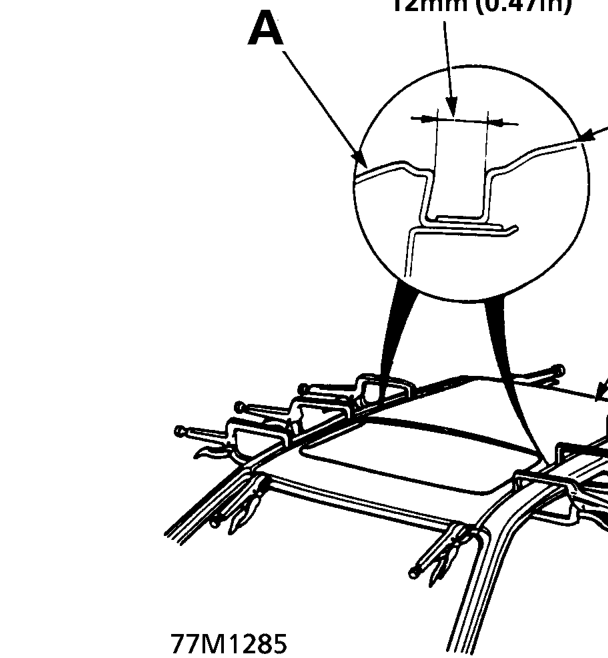

6. Set the new roof panel.

• Sand off the undercoat from both sides of the flange sections to be spot welded to expose the steel plate.

WARNING: To prevent eye injury, wear goggles or safety glasses whenever sanding, cutting or grinding.

• Clamp the roof panel with vice-grips.

NOTE: Check that the flange surfaces fit closely.

• Be careful not to twist or deform the roof panel.
• Check the width of the groove for the roof mouldings on both sides.
• Apply the spot sealer to the welding surface when spot welding.

A. Outer Panel B. Roof Panel C. New Roof Panel

• Check the body dimensions.
