Replacement (page 5 of 5)

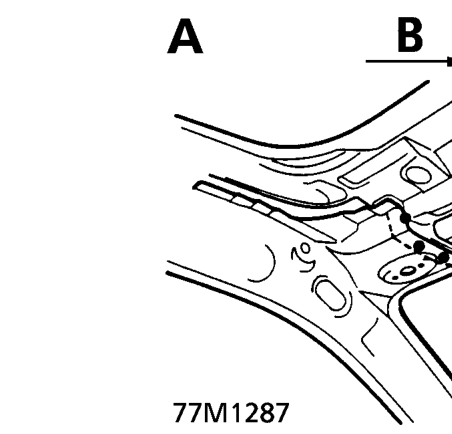

A. Front B. Forward

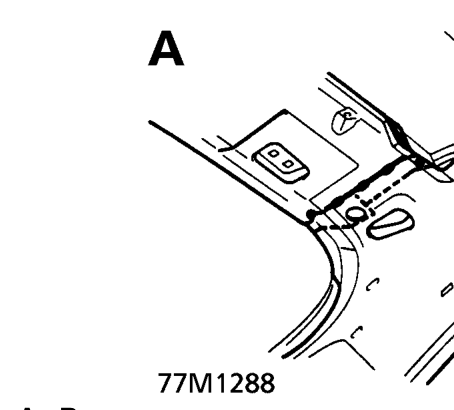

A. Rear

9. Apply and level the sealer to the welded areas.

10. Apply the paint.

WARNING: Ventilate when spraying paint. Most paint contains substances that are harmful if inhaled or swallowed. • Read the paint label before opening paint container. • Avoid contact with the skin. Wear an approved respirator, gloves, eye protection and appropriate clothing when painting. • Paint is flammable. Store it in a safe place, and keep it away from sparks, flames or cigarettes.

11. Apply an anti-rust agent to the inside of the roof side rail.
12. Install the related parts. Install in the reverse order of removal.
13. Check and clean

• Check the windscreen and tailgate opening area for water leaks.
• Adjust the clearance with the tailgate, then adjust the level difference and fit. Check operation.
• Make sure the sunroof operates smoothly.
• Clean the passenger compartment thoroughly.
