Replacement (page 4 of 5)

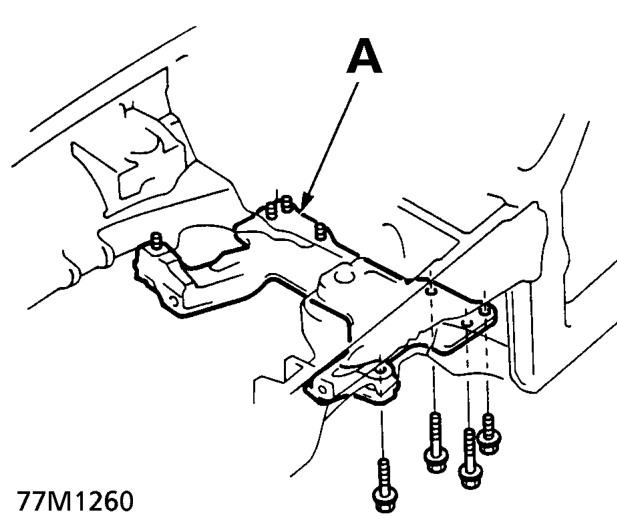

A. Rear Beam

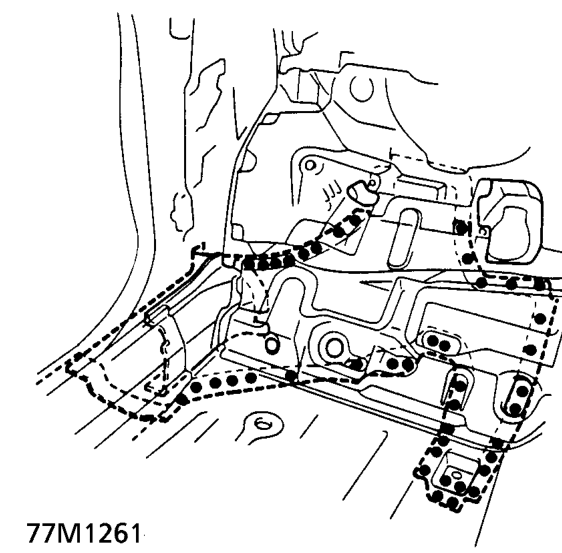

11. Perform the main welding.

WARNING: To prevent eye injury and burns when welding, wear an approved welding helmet, gloves and safety shoes.

• From the passenger compartment side, weld the holes in the lower dashboard, front floor and floor frame with a MIG welder.
• Weld the front side frame and front side outrigger using MIG welds.

• Make 5 mm (0.2 in) holes in the MIG weld holes with the outrigger, and weld the inside sill with a MIG welder.
