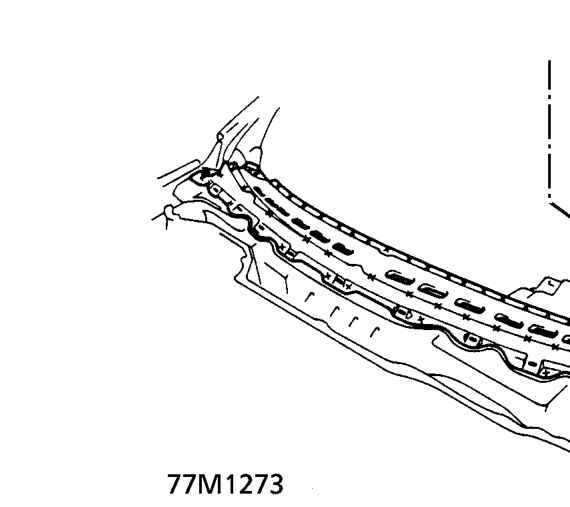

Windscreen lower (page 3 of 3)

6. Finish the welding section. Smooth the mating surface with the windscreen lower with a hammer and dolly.
7. Apply the sealer. Apply sealer to the upper dashboard, pillars, etc.
8. Install the front wing and bonnet. Check the front wing and bonnet for differences in level and clearance.
9. Apply the paint.

WARNING: Ventilate when spraying paint. Most paint contains substances that are harmful if inhaled or swallowed. Read the paint label before opening paint container. • Avoid contact with the skin. Wear an approved respirator, gloves, eye protection and appropriate clothing when painting. • Paint is flammable. Store it in a safe place, and keep it away from sparks, flames or cigarettes.

10. Apply anti-rust agent to the inside of the windscreen lower and dashboard upper.
11. Install the related parts. Install in the reverse order of removal.

NOTE: Take care not to damage the windscreen and the paint finishes.

12. Inspect and clean.

• Check the windscreen for water leaks.
• After installing the dashboard, check the lights, gauges, etc. for proper operation.
• Clean the interior.
