Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition08 · Automatic gearbox
08 · Transmission

Components

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Components
Automatic gearboxComponents

Components

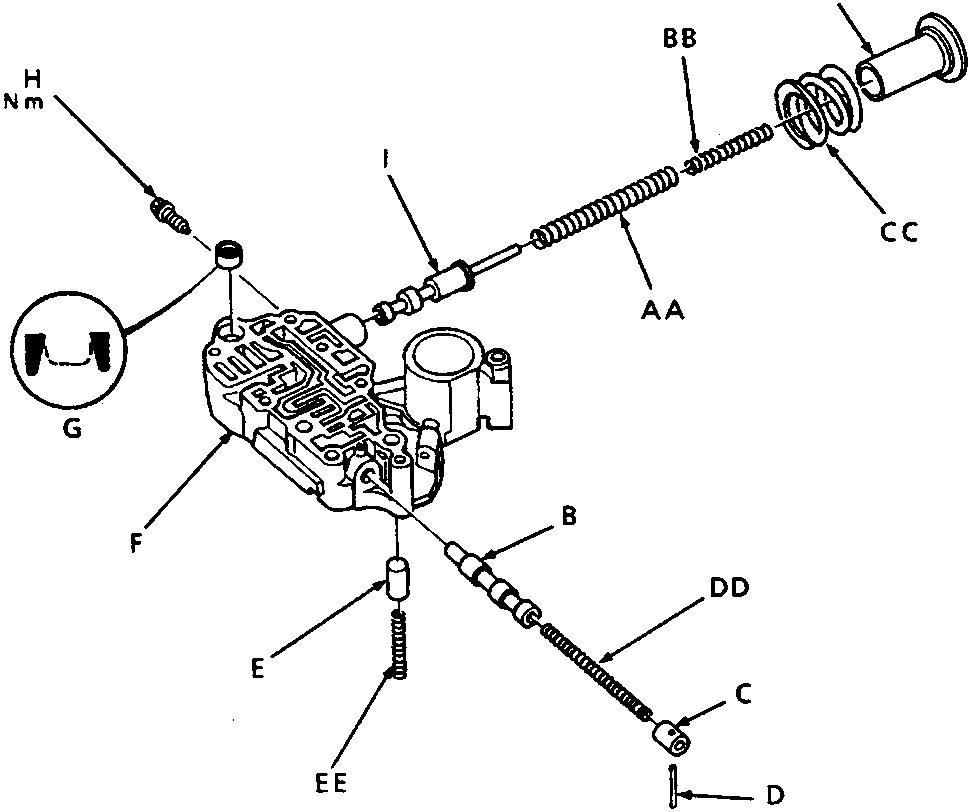

Exploded diagram of the regulator valve body showing components labeled A through I, including springs, valves, caps, and a stopper bolt with a torque specification of 12 Nm.
  1. Regulator spring cap
  2. Lock – up timing valve
  3. Valve spring cap
  4. Valve cap roller
  5. Torque converter check valve
  6. Regulator valve body
  7. Filter
  8. Stopper bolt
  9. Regulator valve
