Countershaft bearing

Countershaft bearing

A Countershaft needle bearing

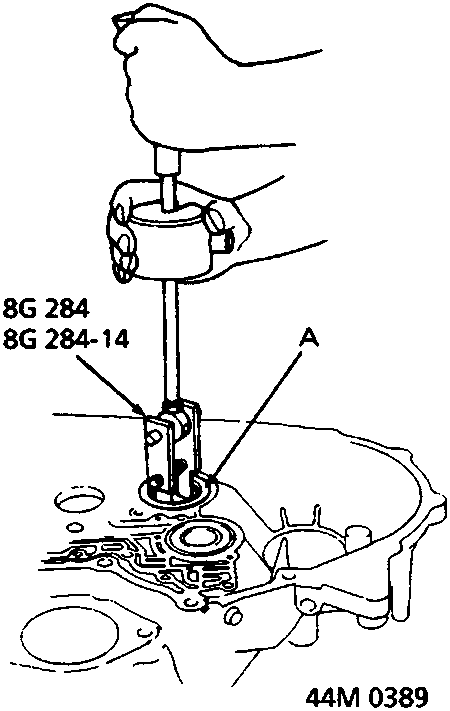

1. Remove the countershaft needle bearing using tools.

1. A Bearing
2. B Housing
3. C Oil guide plate

2. Install the oil guide plate.

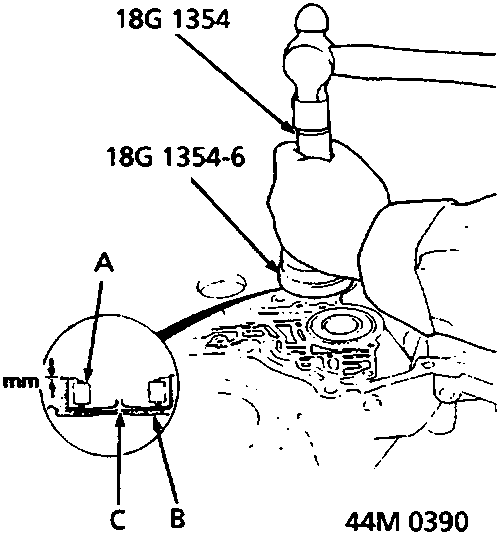

3. Drive the new bearing into the housing, using tools.
4. Ensure there is a fitted dimension of 0 – 0.03 mm between bearing race and face of housing.

Secondary shaft bearing

A Secondary shaft bearing

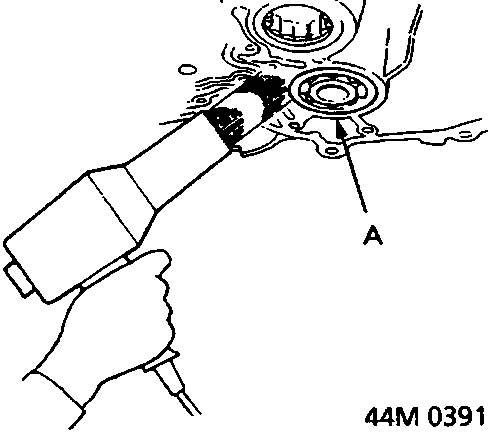

1. Remove the secondary shaft bearing by heating the torque converter housing to 100°C, then tap the housing until the bearing falls out.

CAUTION: Do not heat the case in excess of 100°C.

1. A Bearing
2. B Gearbox housing
3. C Oil guide plate

2. Install the oil guide plate.

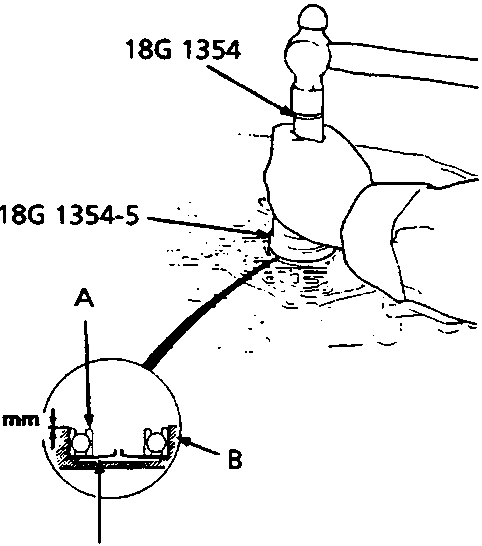

3. Drive the new bearing into the housing, using tools.

CAUTION: Ensure there is a fitted dimension of 0 – 0.03 mm between bearing race and face of housing.
