Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition08 · Automatic gearbox
08 · Transmission

Remove

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Remove
Automatic gearboxRemove · page 1 of 10

Remove

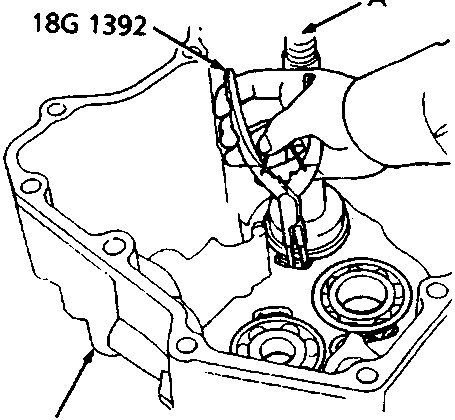

Diagram showing a press tool (18G 1392) being used to remove a bearing from the gearbox housing.
A Press B Gearbox housing

Mainshaft and Secondary Shaft Bearings

Diagram showing tools 18G 1354 and 18G 1354-14 expanding a snap ring to press out a bearing (A).
A Bearing

Countershaft bearing

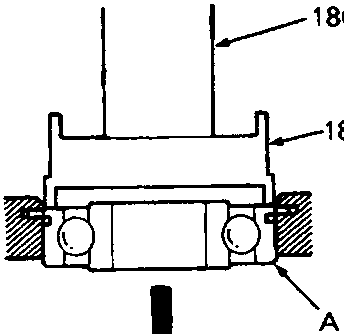

Diagram showing tools 18G 1354 and 18G 1354-15 expanding a snap ring to press out a bearing (A).
A Bearing
  1. To remove the mainshaft, countershaft and secondary shaft bearings from the gearbox housing, expand each snap ring using tool, then press the bearing out using the appropriate tools and a press.

Note: Do not remove the snap rings unless it is necessary to clean the grooves in the housing.

Mainshaft and Secondary Shaft Bearings

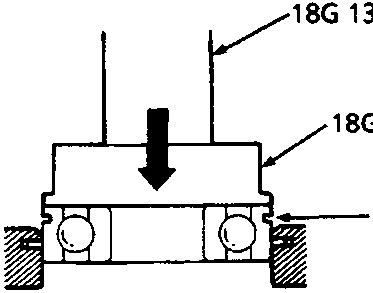

Diagram showing tools 18G 1354 and 18G 1354-14 pressing down on a bearing (A) to remove it.

Countershaft bearing
