Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition08 · Automatic gearbox
08 · Transmission

Mainshaft bearing and oil seal

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Mainshaft bearing and oil seal
Automatic gearboxMainshaft bearing and oil seal

Mainshaft bearing and oil seal

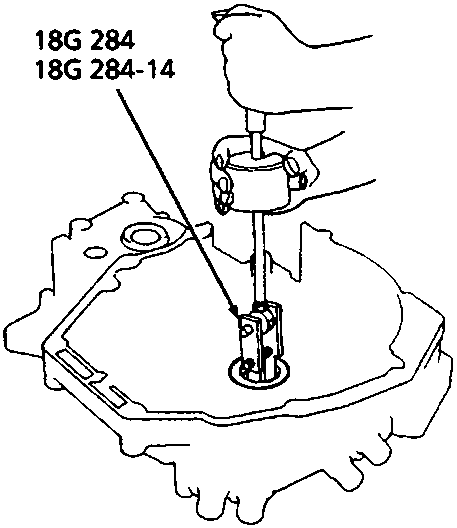

Diagram showing removal of mainshaft bearing and oil seal using tools 18G 284 and 18G 284-14
  1. Remove the mainshaft bearing and oil seal, using tools.

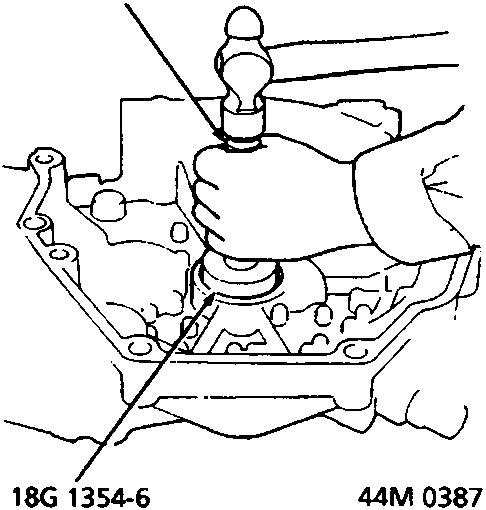

  2. Drive in the new mainshaft bearing until it bottoms in the housing, using tools.
Diagram showing driving in the new mainshaft bearing using tool 18G 1354 and 18G 1354-6

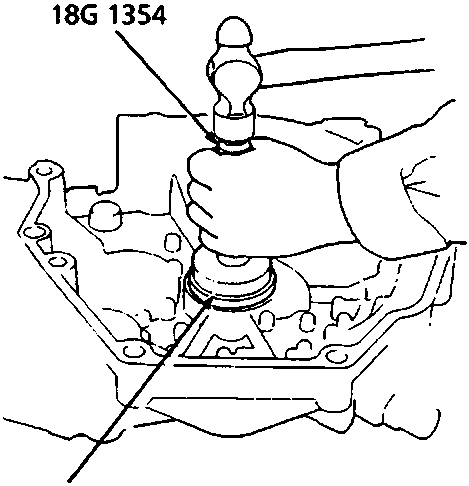

Diagram showing fitting of the new oil seal flush with the housing using tools 18G 1354 and 18G 1354-14
  1. Lubricate oil seal and fit the new oil seal flush with the housing, using tools.
