Automatic gearboxDismantling · page 1 of 2

Dismantling

  1. Remove locknut, discard conical washer.
  2. Remove components as far as 1st hold clutch.

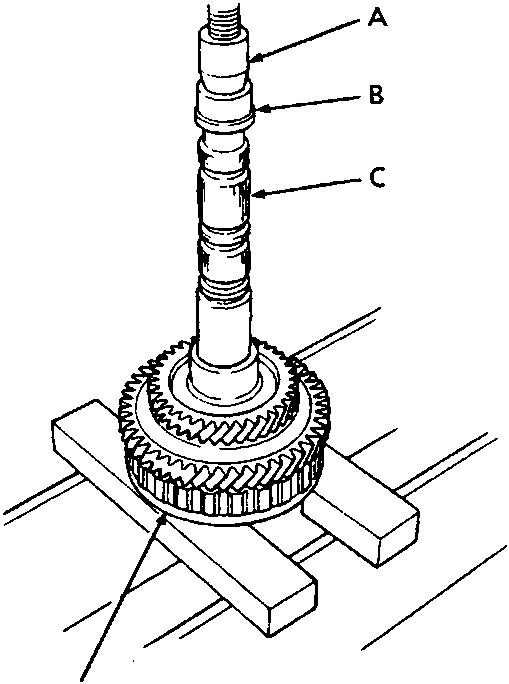

Diagram showing a press (A), mandrel (B), countershaft (C), and 1st hold clutch (D) being used to remove the clutch from the shaft. Figure number 44M 0351.
  1. Press
  2. Mandrel
  3. Countershaft
  4. 1st hold clutch
  1. Using a press, press out the countershaft while supporting the 1st – hold clutch.

Note: Place a mandrel between press and countershaft to prevent damage to the shaft.

Inspection

  1. Inspect all components for wear, bearings for roughness and wear and gear teeth for chipping; replace components as necessary.
  2. Check countershaft splines and bearing surfaces for damage and wear.
