600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition

Section

Repairs › Components

Automatic gearboxComponents · page 1 of 4

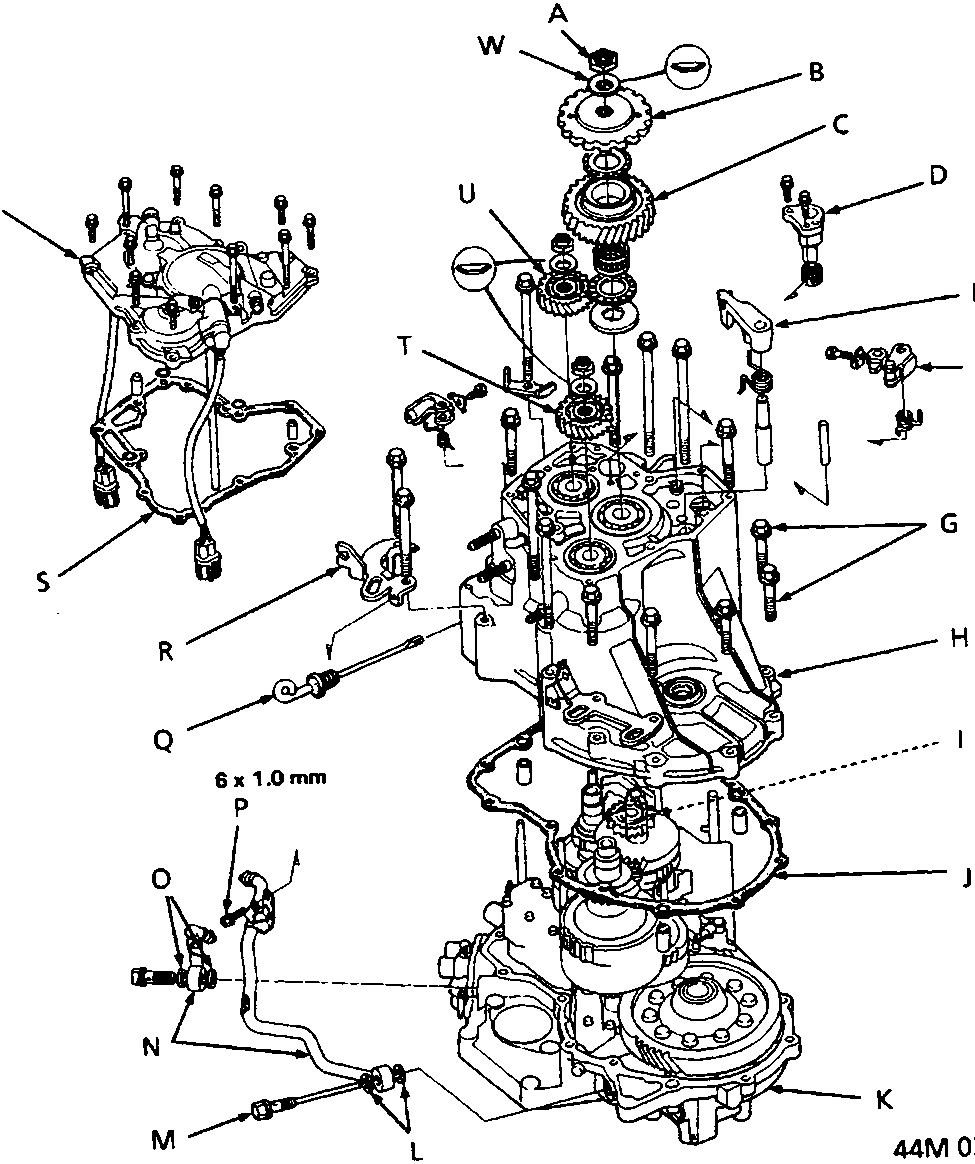

Components

A	Locknut	M	Banjo bolts
B	Parking gear	N	Fluid cooler pipes
C	Countershaft idler gear	O	Sealing washers
D	Reverse idler gear shaft holder	P	Pipe retaining bolt
E	Parking brake pawl	Q	Fluid level gauge
F	Parking brake lever	R	Bracket
G	Gearbox housing bolts	S	Right side cover gasket
H	Gearbox housing	T	Secondary shaft idler gear
I	Reverse idler gear	U	Mainshaft idler gear
J	Gearbox housing gasket	V	Right side cover
K	Torque converter housing	W	Conical spring washer
L	Sealing washers

08 Transmission
