Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition08 · Automatic gearbox
08 · Transmission

Components (page 4 of 4)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Automatic gearboxComponents · page 4 of 4

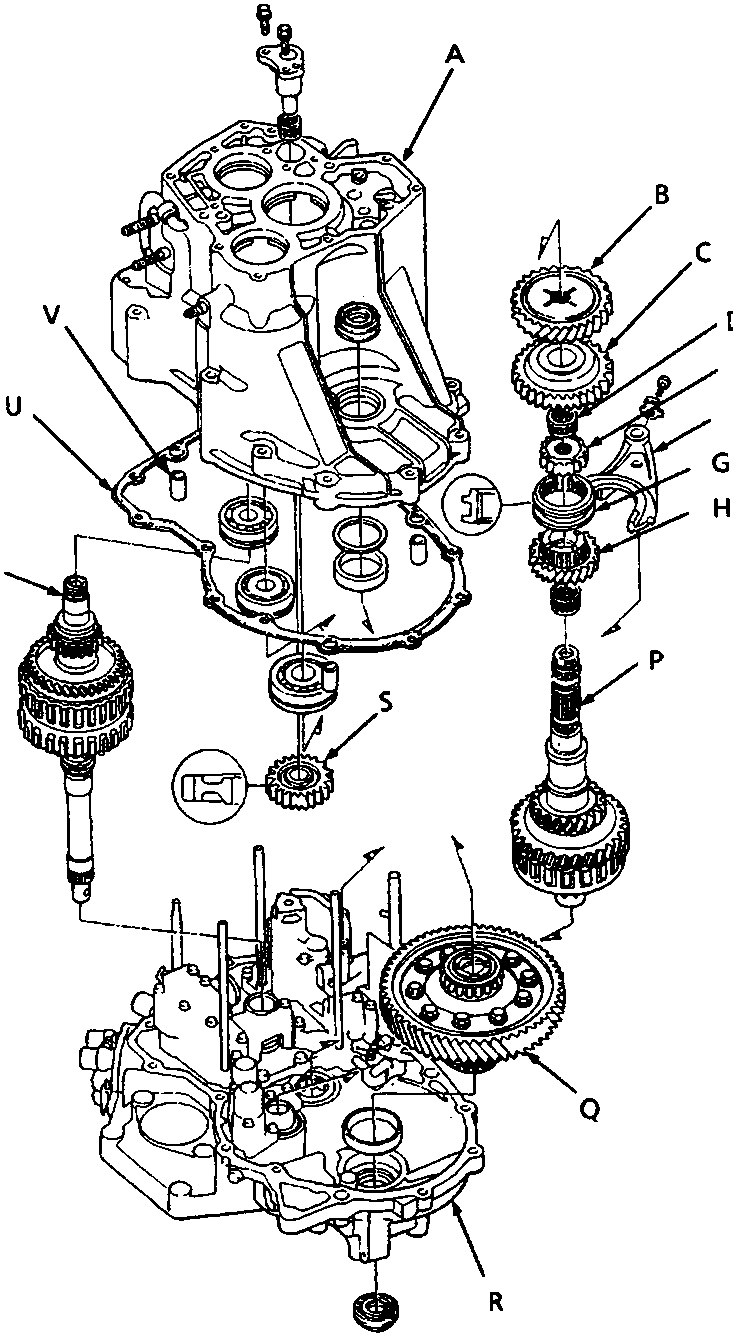

Exploded view diagram of the automatic gearbox housing showing internal components labeled A through V, including gear assemblies, shafts, and selector mechanisms.

44M 0331

AGearbox housingLNeedle bearings
BCountershaft 2nd gearMThrust needle bearing
CCountershaft reverse gearNSplined washer
DNeedle bearingOSecondary shaft sub – assembly
EReverse selector hubPCountershaft sub – assembly
FShift forkQDifferential assembly
GReverse selectorRTorque converter housing
HCountershaft 4th gearSReverse idler gear
IThrust washerTMainshaft sub – assembly
JThrust needle bearingUGearbox housing gasket
KSecondary shaft 2nd gearVDowel
