Automatic gearboxInspection

Inspection

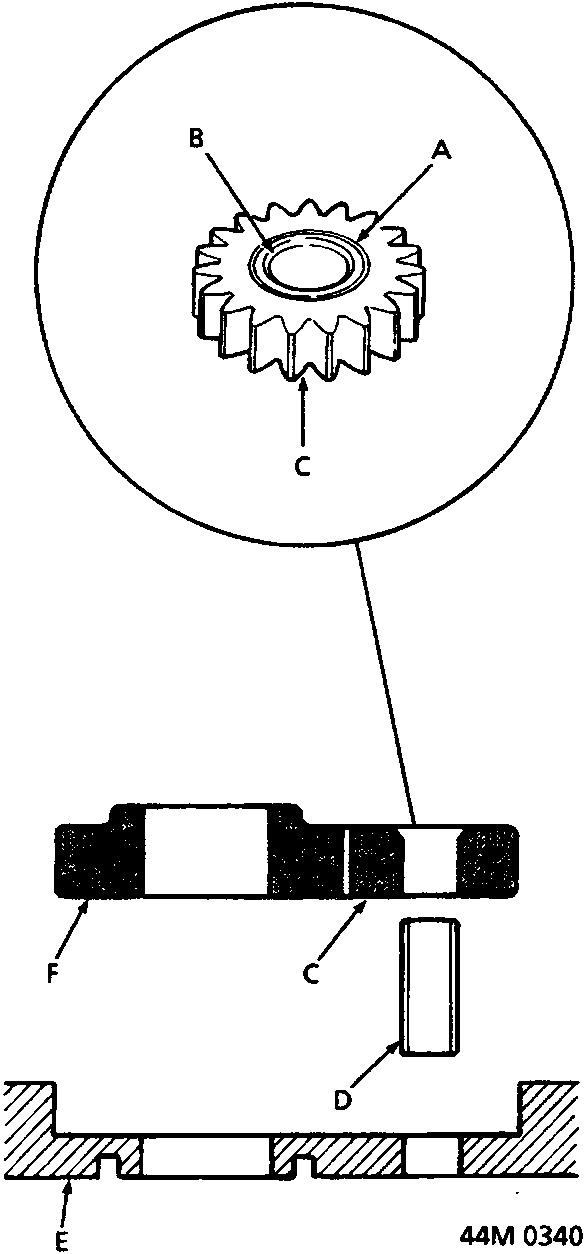

Diagram of oil pump drive gear, driven gear, driven gear shaft, and main valve body with callouts A through F

A Oil pump driven gear groove

B Oil pump driven gear chamfer

C Oil pump driven gear

D Oil pump driven gear shaft

E Main valve body

F Oil pump drive gear

  1. Smear oil pump drive gear, driven gear and driven gear shaft with transmission fluid.
  2. Install the oil pump drive gear, oil pump driven gear and oil pump driven gear shaft in the main valve body.

CAUTION: Ensure grooved and chamfered side of driven gear faces away from main valve body.

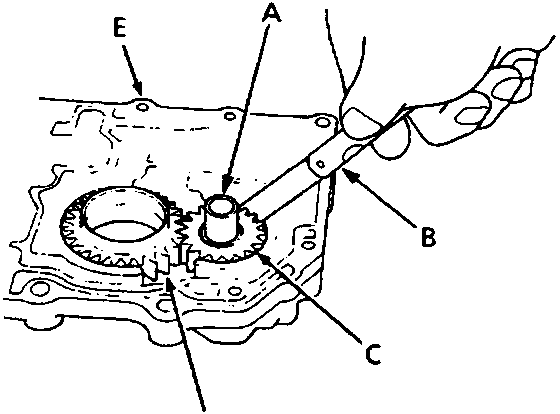

Diagram showing measurement of oil pump gears clearance using a feeler gauge between the driven gear shaft and main valve body

A Oil pump driven gear shaft

B Feeler gauge

C Oil pump driven gear

D Oil pump drive gear

E Main valve body

  1. Inspect gears and gear teeth for wear or damage, replace as necessary.
  2. Measure the side clearance of the oil pump drive gear and oil pump driven gear.

Oil Pump Gears Side (Radial) Clearance:

Standard (New):

Oil Pump Drive gear = 0.210 – 0.265 mm

Oil Pump Driven gear = 0.035 – 0.063 mm
