Automatic gearboxSecondary valve body – valve spring identification
Clean all parts thoroughly in solvent or cleaner, and dry with compressed air. Blow out all passages. Check all valves for free movement. If any fail to slide freely, see Valves and valve body.
Coat all parts with transmission fluid before assembling.
Replace the valve body as an assembly if any parts are worn or damaged.
CAUTION: Do not use a magnet to remove the check balls; it may magnetise the balls.

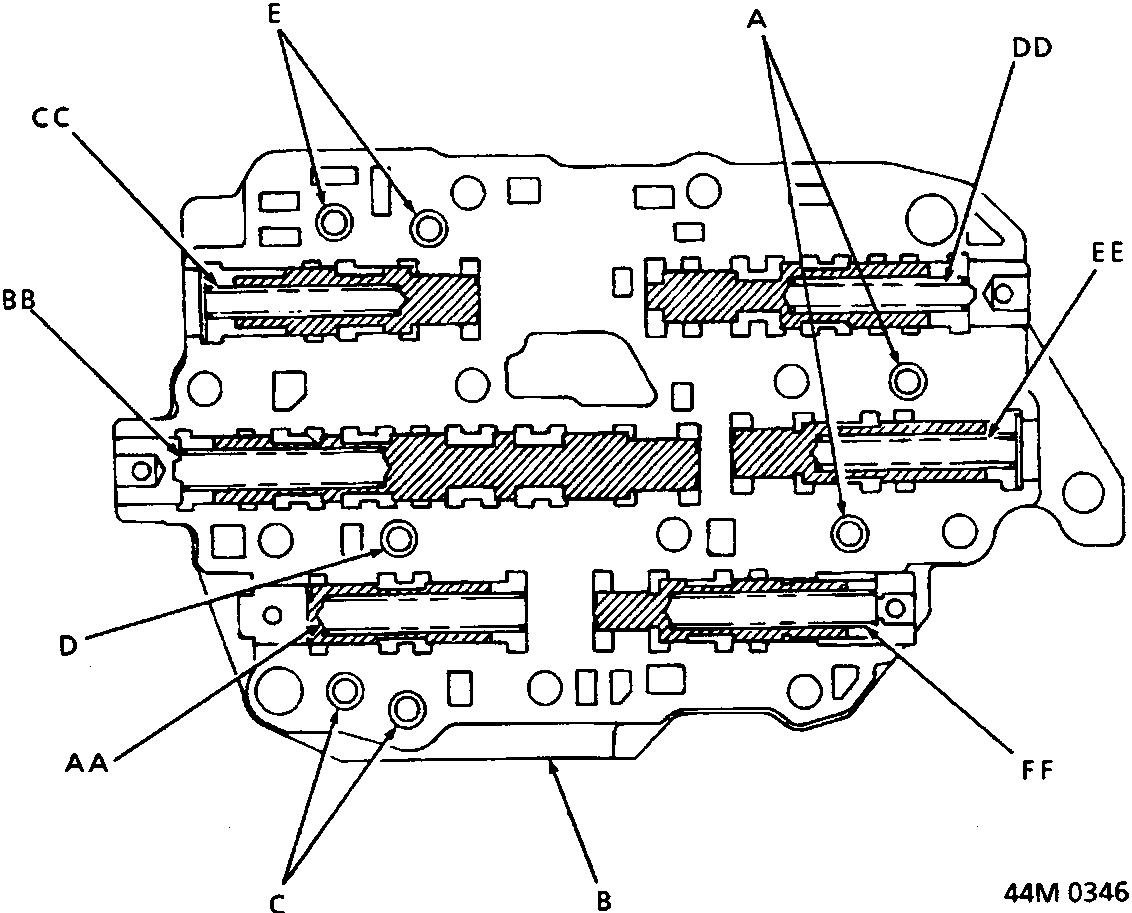

A Check balls – 2 off &...... D Check ball – 1 off
B Secondary valve body E Check balls – 2 off
C Check balls – 2 off
Secondary valve body – valve spring identification
| No. | Wire diameter | Standard (New) | |||
|---|---|---|---|---|---|
| Valve spring | Outside diameter | Free length – new | No. of coils | ||
| AA | 4th exhaust valve | 0.9 | 7.10 | 60.80 | 28.9 |
| BB | 3 – 4 shift valve | 0.9 | 7.60 | 57.00 | 26.8 |
| CC | 3rd kick – down valve | 1.1 | 7.60 | 48.30 | 23.3 |
| DD | Servo control valve | 1.0 | 8.10 | 52.60 | 22.4 |
| EE | Orifice control valve | 0.8 | 6.60 | 52.50 | 33 |
| FF | 2nd orifice control valve | 0.6 | 6.60 | 58.30 | 15.8 |
