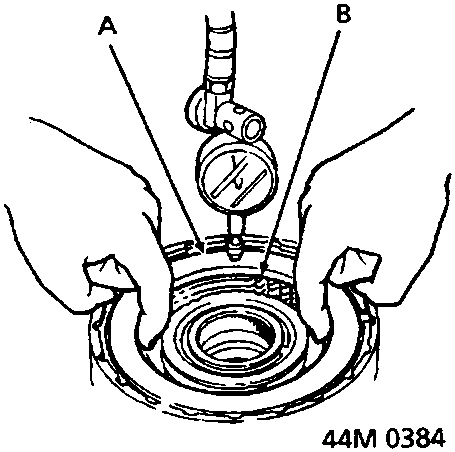

Clutch End Plate - to - Top Disc Clearance:

A     Clutch end plate

B     Top disc

16. Measure in three locaions the clearance between the clutch end plate and top disc with a D.T.I. gauge. Zero the dial indicator with the clutch end plate lowered and lift it up to the snap ring. The distance that the clutch end plate moves is the clearance between the clutch end plate and top disc.

Clutch End Plate - to - Top Disc Clearance:

1st clutch = 0.65 to 0.85 mm

2nd clutch = 0.65 to 0.85 mm

3rd clutch = 0.40 to 0.60 mm

4th clutch = 0.40 to 0.60 mm

1st hold clutch = 0.80 to 1.00 mm

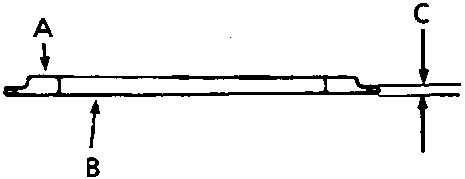

A     Number

B     Thickness

C     Clutch end plate

17. If the clearance is not within the service limits, select a new clutch end plate.

Note: Nine thicknesses of clutch end plate are available rising in increments of 0.10 mm from 2.10 to 2.90 mm thick.

18. Select the appropriate thickness of clutch end plate, and check that the clearance is now within limits.

CAUTION: If the thickest clutch end plate is installed but the clearance is still over that specified, replace the clutch discs and clutch plates.
