Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition08 · Automatic gearbox
08 · Transmission

Reassemble (page 11 of 11)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Automatic gearboxReassemble · page 11 of 11

For all clutches.

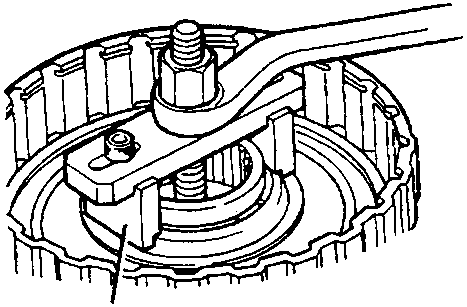

Tool 18G 1016 and 18G 1016-2 (44M 0379) compressing a return spring in a clutch assembly
  1. Compress the return spring.

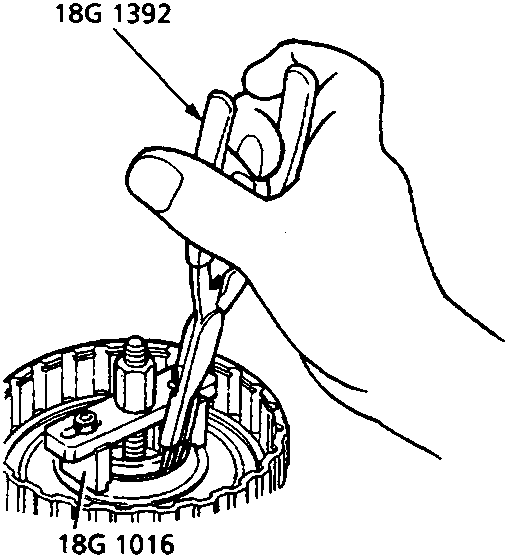

Tool 18G 1392, 18G 1016 and 18G 1016-2 (44M 0380) fitting a snap ring into a clutch assembly
  1. Fit the snap ring using tool.
  2. Remove the tools

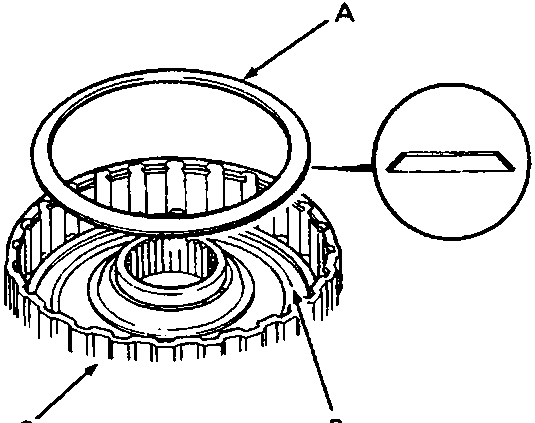

Exploded view of disc spring (A), piston (B), and clutch drum (C) with tool reference 44M 0381
  1. Install the disc spring.
  2. For 1st-hold and 2nd clutches, install the disc spring in the direction shown.

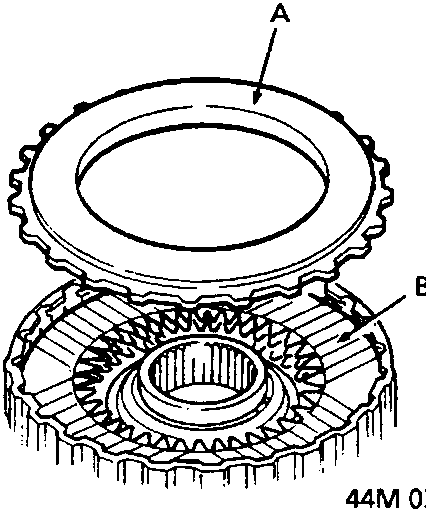

Clutch end plate (A) positioned above clutch discs (B) with reference 44M 0382

A     Clutch end plate
B     Clutch disc

The following operations are for all clutches.

  1. Soak the clutch discs thoroughly in transmission fluid for a minimum of 30 minutes.
  2. Starting with a clutch plate, alternately install the clutch plates and discs. Install the clutch end plate with flat side toward the disc.
  3. Before installing the plates and discs, make sure the inside of the clutch drum is free of dirt or other foreign matter.

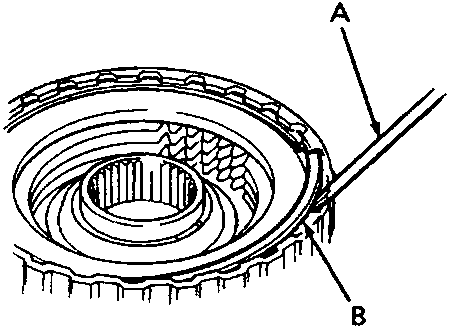

Screwdriver (A) installing a snap ring (B) into a clutch assembly with reference 44M 0383
  1. Install the snap ring.
