Automatic gearboxReassemble · page 10 of 11

1st hold clutch

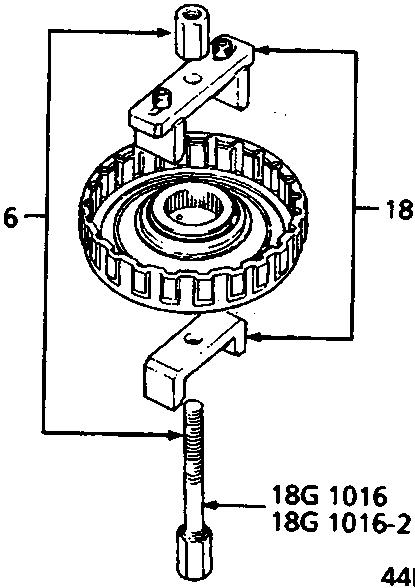

Exploded view of 1st hold clutch assembly showing tool 18G 1016 and 18G 1016-2

1st, 2nd, 3rd and 4th clutches.

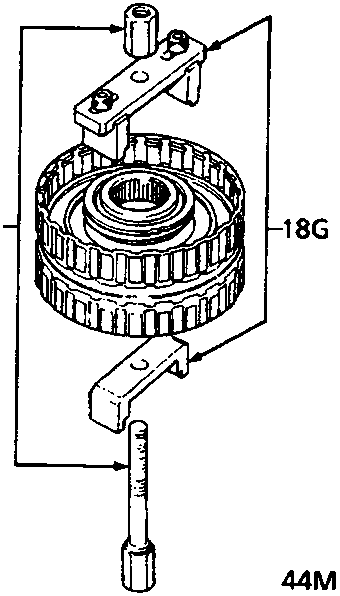

Exploded view of 1st, 2nd, 3rd and 4th clutches assembly showing tool 18G 1016 and 18G 1016-2
  1. Use tools to compress clutch springs.

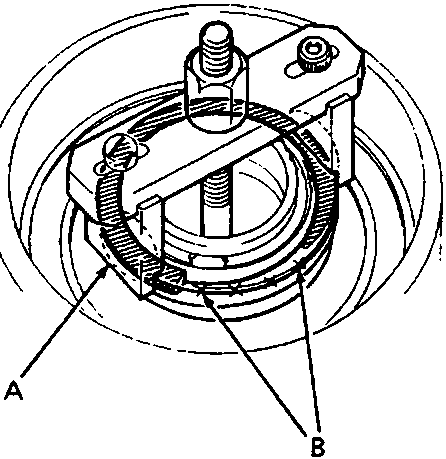

Close-up of tool positioning on clutch spring retainer, showing correct position A and incorrect position B

A Tool correctly positioned
B Tool incorrectly positioned

CAUTION: If either tool is placed over an area of the spring retainer which is unsupported by the return spring, the retainer may be damaged.
