Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition08 · Automatic gearbox
08 · Transmission

Components

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Components
Automatic gearboxComponents · page 1 of 2

Components

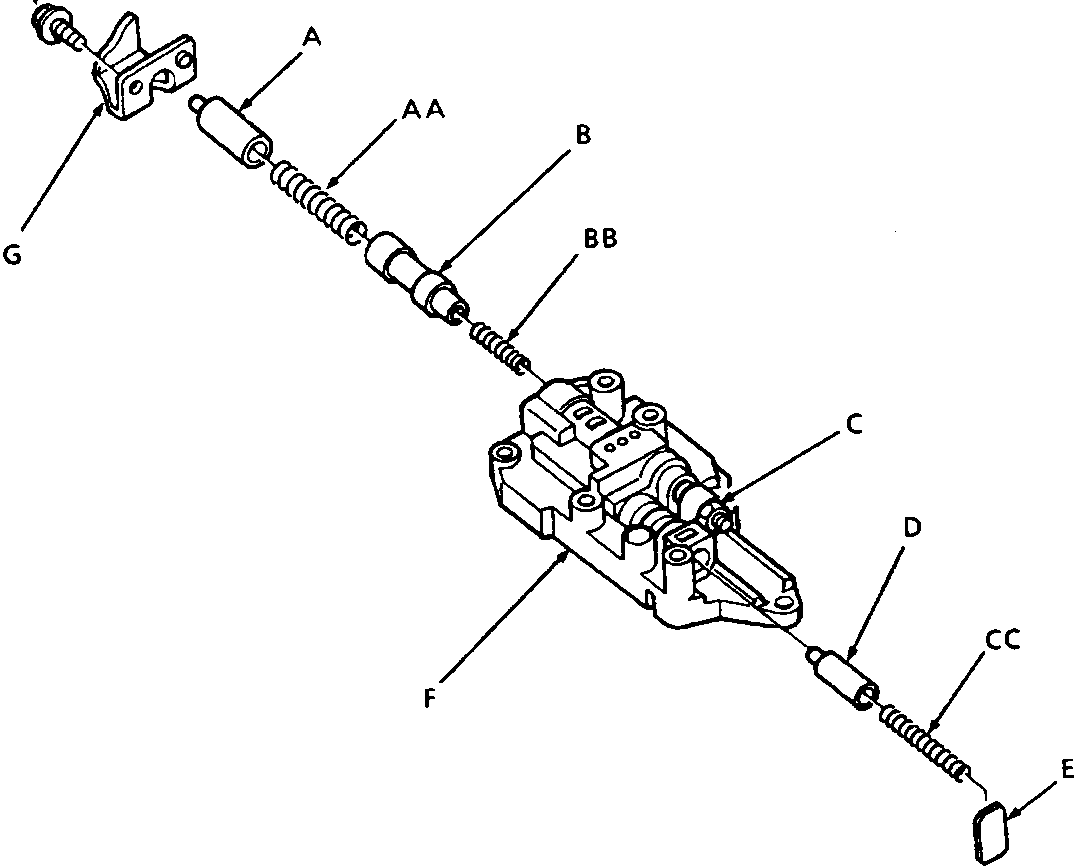

Exploded view diagram of the throttle valve body assembly showing components labeled A through H, AA, BB, and CC. A torque specification of 8 Nm is indicated for component H. The figure number 44M 0348 appears below the diagram.
AThrottle short valve BEValve spring seat
BThrottle long valveFThrottle valve body
CThrottle adjusting boltGThrottle cam stopper
DRelief valveHThrottle cam stopper bolt

CAUTION: Do not loosen or remove throttle adjusting bolt.
