Automatic gearboxInspection · page 1 of 4
Inspection
Clean all parts thoroughly in solvent or cleaner, and dry with compressed air. Blow out all passages. Replace valve body as an assembly if any parts are worn or damaged.
Check all valves for free movement. If any fail to slide freely, see Valves and valve body.
Coat all parts with transmission fluid before reassembling, fit a new filter.

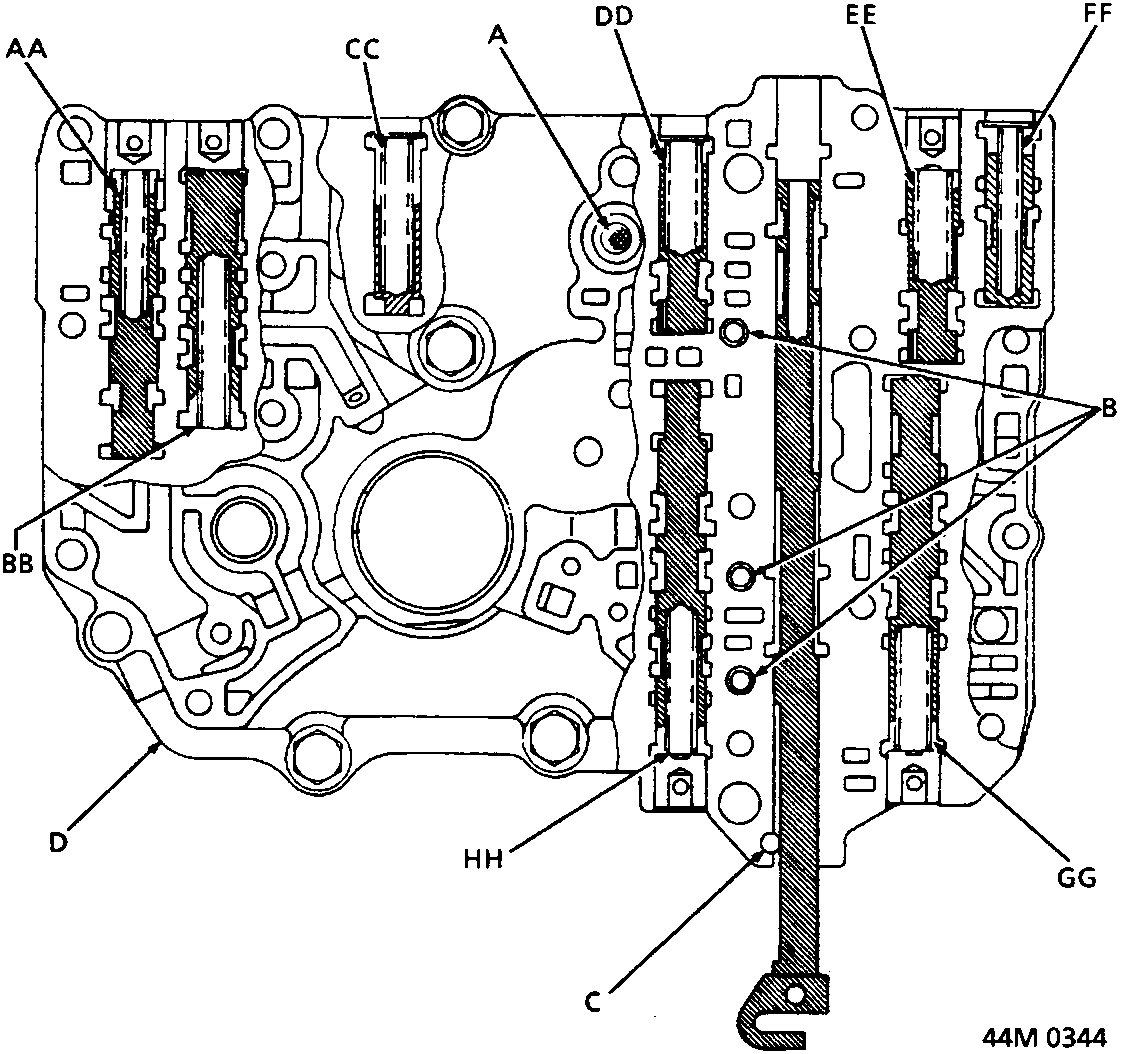

- Filter
- Check balls – 3 off
- Detent arm shaft
- Main valve body
