Reassemble (page 9 of 11)

Clean all parts thoroughly in solvent or carburetter cleaner, and dry with compressed air.

Lubricate all parts with transmission fluid before assembly.

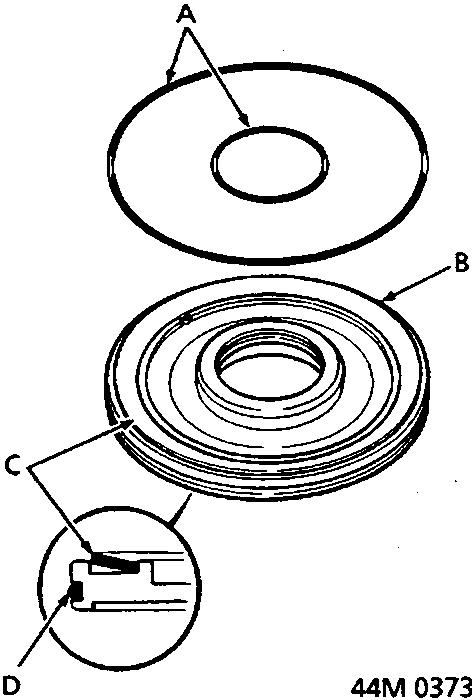

1. O rings
2. Piston
3. Disc spring
4. O ring
1. Ensure that the disc spring is securely staked.
2. Fit new 'O' rings on the piston.

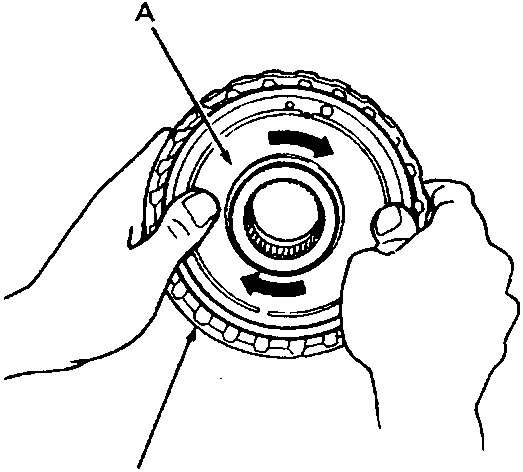

A Piston

B Clutch drum

3. Install the piston in the clutch drum. Apply pressure and rotate to ensure proper seating.
4. Lubricate the piston 'O' ring with transmission fluid before installing.

CAUTION: Do not damage 'O' ring by installing the piston with force.

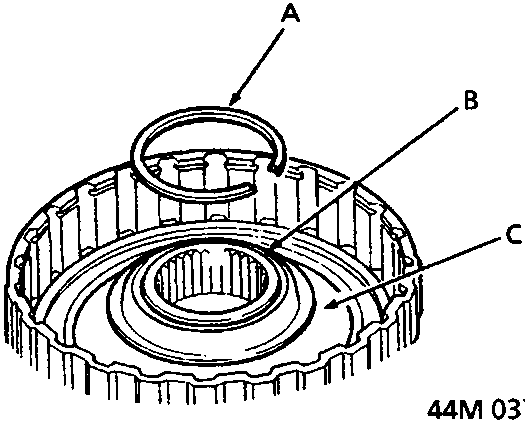

1. Snap ring
2. Spring retainer
3. Return spring

5. Install the return spring and spring retainer and position the snap ring on the retainer.
