Automatic gearboxComponents · page 3 of 4
  1. Remove the reverse idler gear shaft holder.

Note: The steel ball should not be removed, it is staked in the shaft.

  1. Move the reverse idler gear sideways to disengage it from the countershaft and mainshaft reverse gears.

Note: The gearbox housing will not separate from the torque converter housing if the reverse idler gear is not removed.

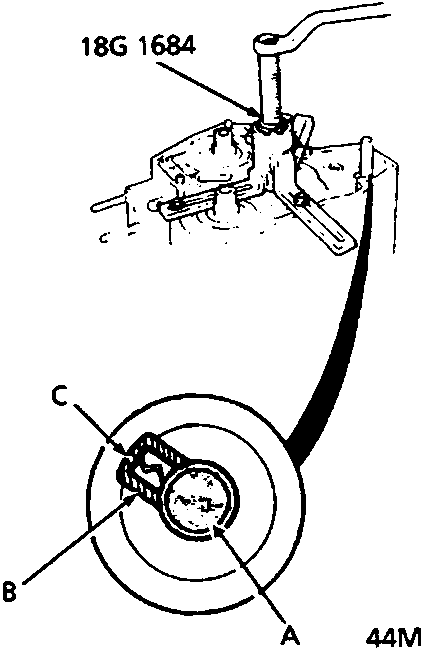

Diagram showing tool 18G 1684 being used on a gearbox assembly, with callouts A (Control shaft), B (Spring pin), and C (Groove). Figure number 44M 0330.
  • A Control shaft
  • B Spring pin
  • C Groove
  1. Align the spring pin of the control shaft with the gearbox housing groove by turning the control shaft.
  2. Install tool on the gearbox housing, then remove the housing as shown.
