Remove (page 2 of 10)

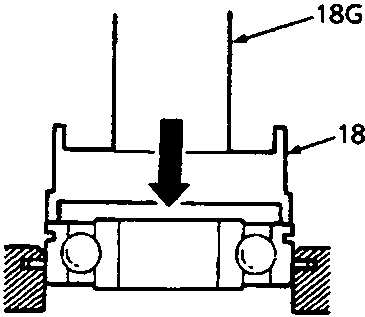

44M 0397

A Bearing

Note: Lubricate bearings with transmission fluid before fitting.

2. Expand each snap ring using tool, and insert the new bearing part – way into the housing, using the appropriate tools and a press as shown. Install with groove side of the bearing facing inside the housing.
3. Remove tool, then push the bearing down into the housing until the ring snaps into place.

44M 0398

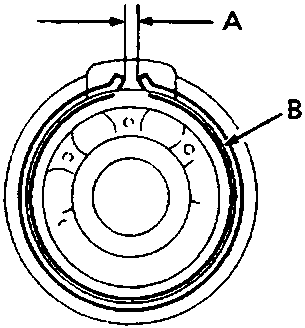

A Snap ring end gap

B Snap ring

4. After installing the ball bearing check the following:
   The snap ring is seated in the bearing and housing grooves.
   The snap ring operates properly.
   The ring end gap is 0 – 7 mm.
