Automatic gearboxRemove · page 8 of 10

H Torque converter housing
I Dowel
J Gearbox housing bolts

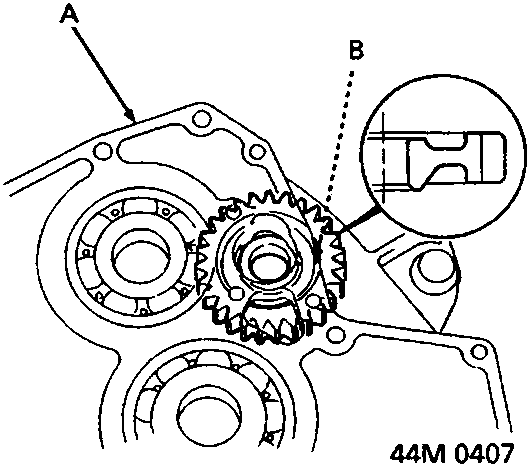

Diagram showing gearbox housing and reverse idler gear with callouts A and B
  • A Gearbox housing
  • B Reverse idler gear
  1. Position the reverse idler gear into the gearbox housing, with the boss in the centre of the gear towards the housing.

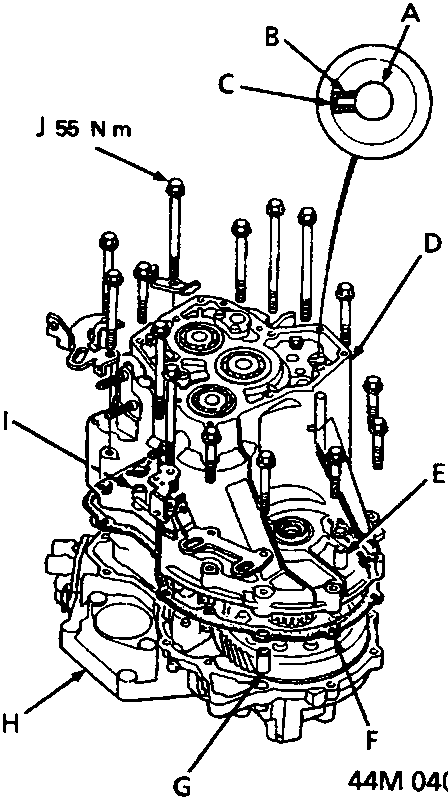

Diagram showing control shaft assembly with callouts A through G and torque specification J 55 Nm
  • A Control shaft
  • B Spring pin
  • C Groove
  • D Gearbox housing
  • E Dowel
  • F Gasket
  • G Dowel
  1. Align the spring pin of the control shaft with the gearbox housing groove by turning the control shaft.
  2. Install three dowel pins and a new gasket on the torque converter housing.
  3. Place the gearbox housing on the torque converter housing.

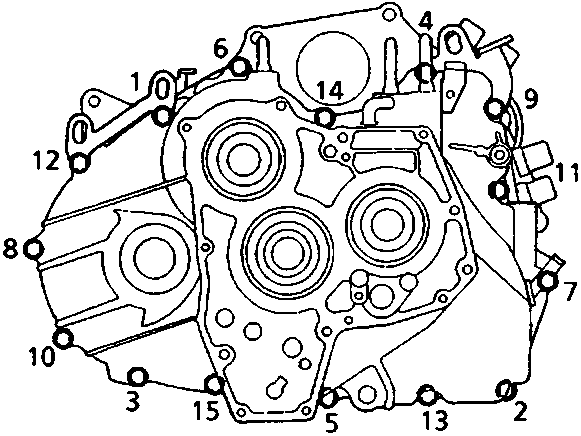

Diagram showing gearbox housing bolt tightening sequence numbered 1 to 15
  1. Install the gearbox housing bolts and bracket, then torque the bolts to 55 Nm in two or more steps in the sequence shown.

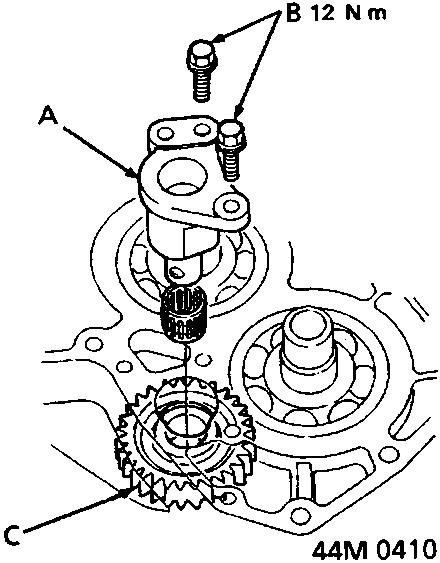

Diagram showing reverse idler gear shaft holder with callouts A, B (12 Nm), and C
  • A Reverse idler gear shaft holder
  • B Securing bolts
  • C Reverse idler gear
  1. Engage the reverse idler gear to the countershaft and mainshaft reverse gears, then install the reverse idler gear shaft holder on the transmission housing. Tighten bolts to 12 Nm.
