Rover 800 Workshop Manual (1996-1999)05 · Engine - diesel
05 · Engine

Engine and gearbox (page 2 of 4)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - dieselEngine and gearbox · page 2 of 4
Diagram

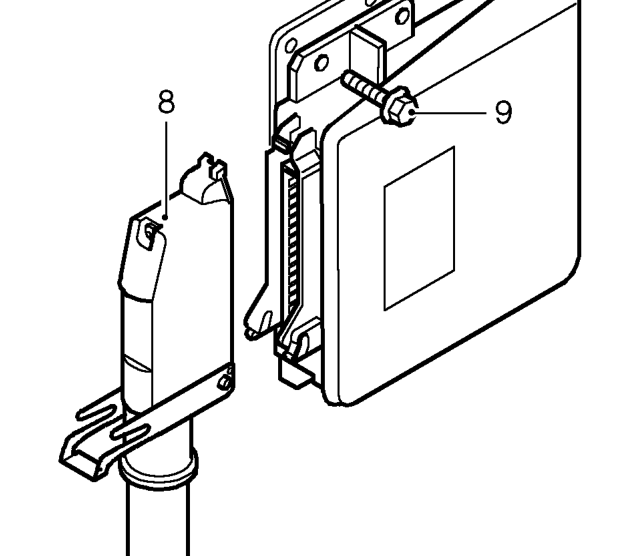

  1. Disconnect multiplug from engine ECM.
  2. Remove 3 bolts securing ECM and remove ECM.
Remove 3 bolts securing ECM and remove ECM.

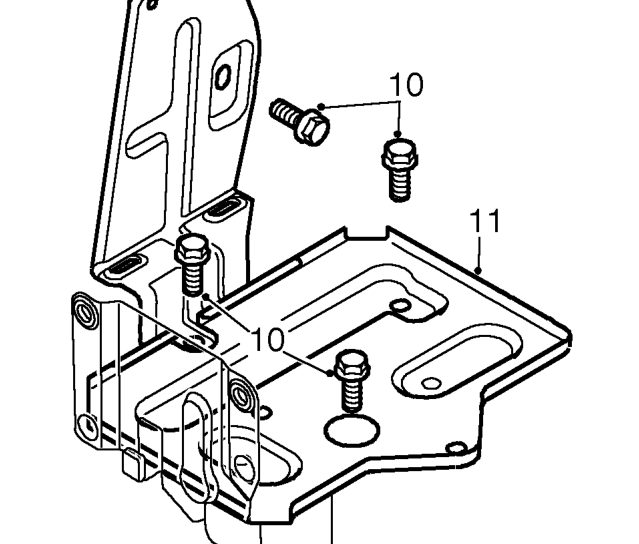

  1. Remove 4 bolts securing battery tray.
  2. Remove battery tray.
Remove battery tray.
  1. Remove 3 bolts securing air cleaner support bracket and remove bracket.
Remove 3 bolts securing air cleaner support bracket and remove bracket.

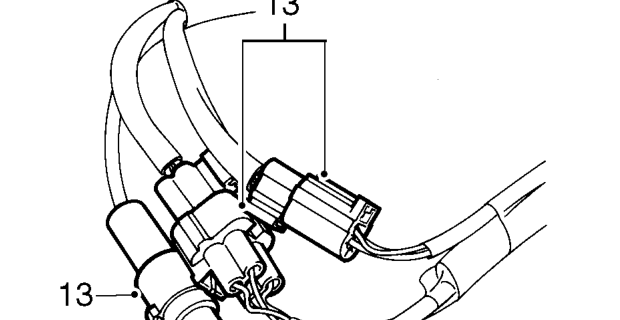

  1. Disconnect 3 engine harness multiplugs at LH side of engine bay.
