Rover 800 Workshop Manual (1996-1999)05 · Engine - diesel
05 · Engine

Engine and gearbox (page 3 of 4)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - dieselEngine and gearbox · page 3 of 4
Diagram

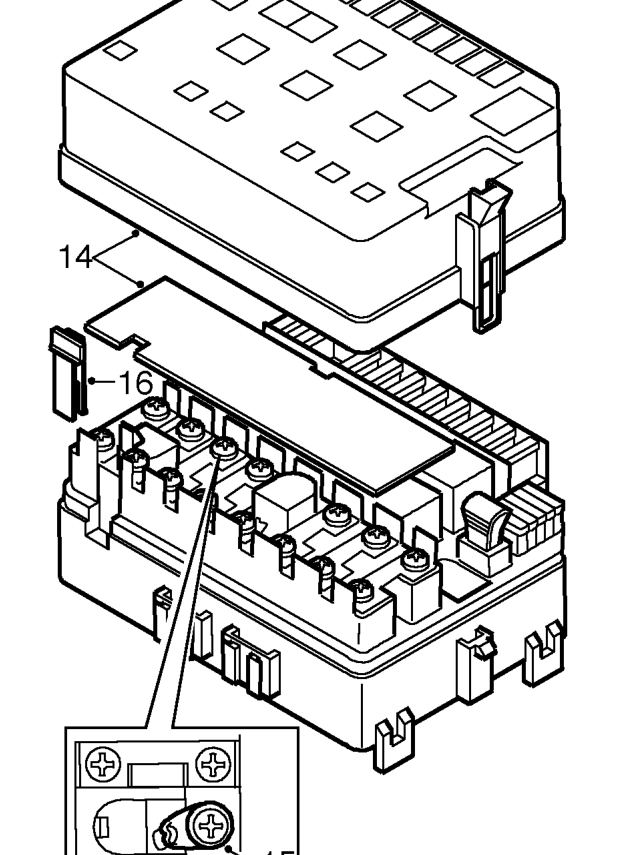

  1. Remove fuse box cover and main fuse cover.
  2. Remove Torx screw securing fuse box main battery feed lead terminal.
  3. Remove lead access panel from fuse box and release lead from fuse box.
  4. Remove battery positive lead terminal bolt and release fuse box main feed lead.
Remove battery positive lead terminal bolt and release fuse box main feed lead.

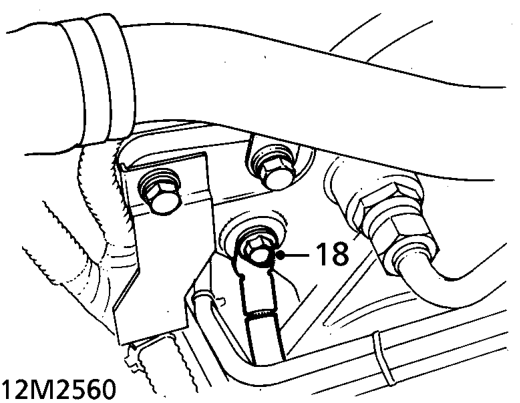

  1. Remove bolt securing earth lead to engine.
Remove bolt securing earth lead to engine.

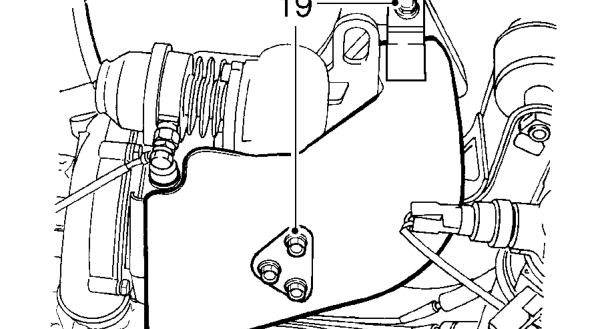

  1. Remove 4 bolts securing turbocharger heat shield. Remove heat shield and collect reinforcing plate.
Remove 4 bolts securing turbocharger heat shield. Remove heat shield and collect reinforci

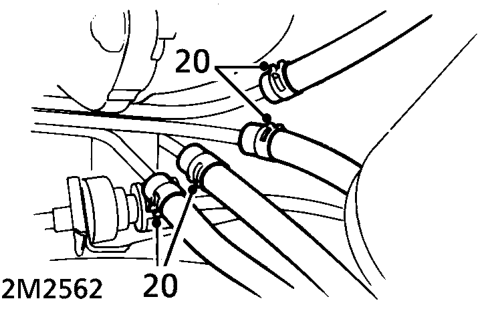

  1. Release 4 clips and disconnect fuel feed and return hoses.

CAUTION: Plug the connections.
