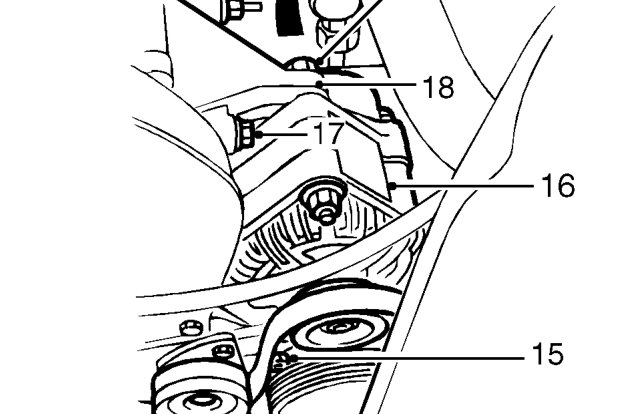

15. Remove 2 nuts and bolts securing alternator to engine.
16. Release alternator from mounting brackets.
17. Remove nut and bolt securing alternator top mounting bracket to cylinder head.
18. Pivot alternator top mounting bracket out of the way.

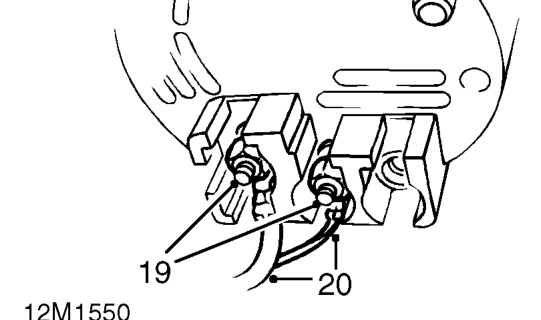

19. Loosen 2 nuts securing cables to alternator.
20. Disconnect 2 cables from alternator.
21. Remove alternator from vehicle.

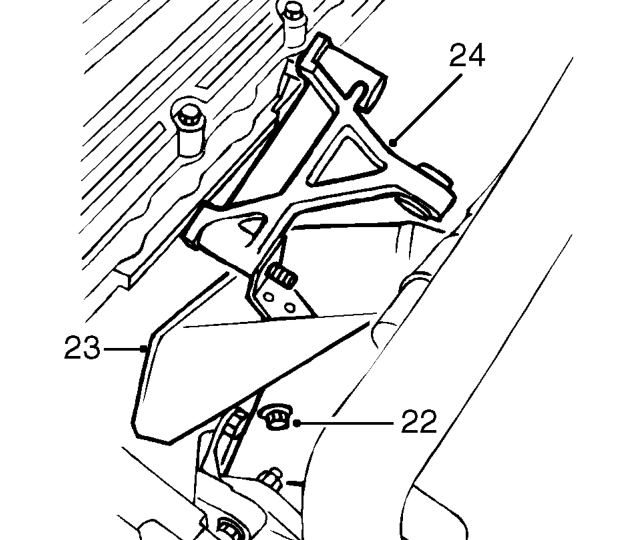

22. Remove bolt securing alternator heatshield to mounting bracket.
23. Release alternator heatshield from stud on cylinder head.
24. Remove alternator top mounting bracket.

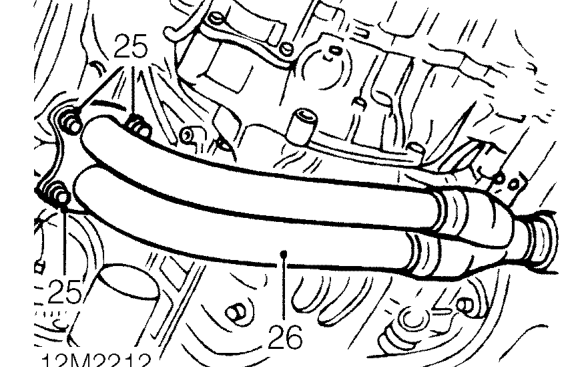

25. Remove 4 nuts securing exhaust front pipe to exhaust manifold.
26. Disconnect exhaust front pipe from exhaust manifold.
27. Remove and discard exhaust manifold flange gasket.
