Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Cylinder head gasket - models with air conditioning (page 4 of 6)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Engine - K16Cylinder head gasket - models with air conditioning · page 4 of 6
Diagram

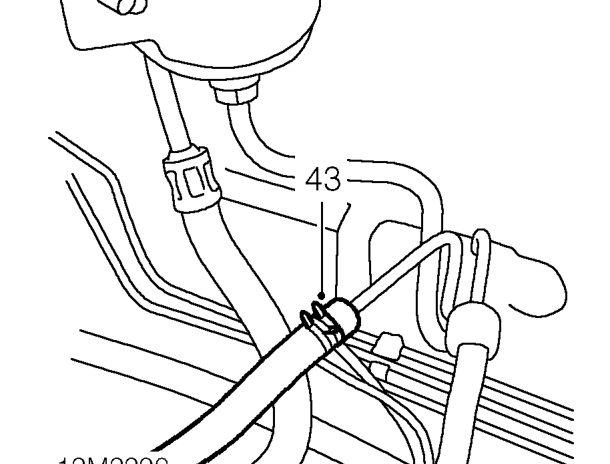

  1. Release clip and disconnect hose from fuel return pipe.

CAUTION: Plug the connections.

Release clip and disconnect hose from fuel return pipe.

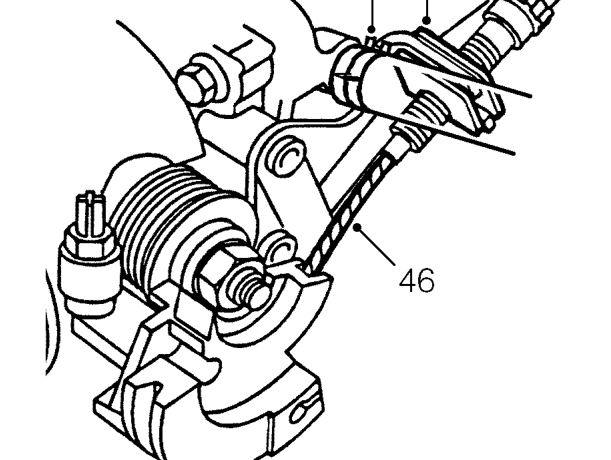

  1. Release clip and disconnect purge hose from throttle housing.
  2. Release throttle cable adjusting nut from abutment bracket.
  3. Dsiconnect throttle cable from throttle cam.
Dsiconnect throttle cable from throttle cam.

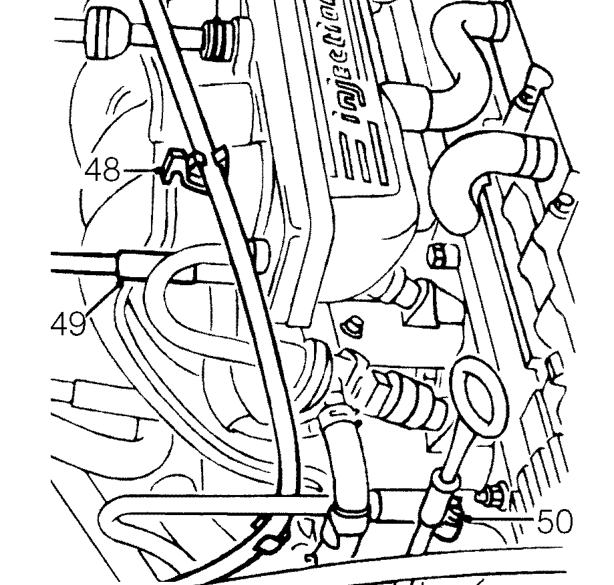

  1. Depress plastic collar on quick release connector and disconnect brake servo vacuum hose from inlet manifold.
  2. Release throttle cable from clip on inlet manifold.
  3. Disconnect vacuum hose from inlet manifold.
  4. Loosen clip and disconnect expansion tank hose from inlet manifold.
  5. Remove camshaft cover. See this section.
Remove camshaft cover. See this section.

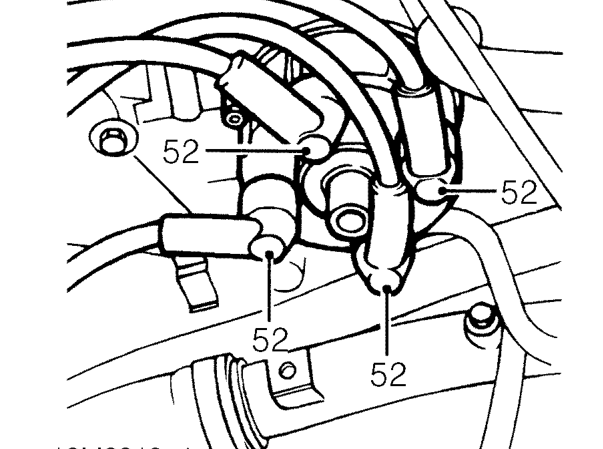

  1. Disconnect h.t. leads from distributor cap.
  2. Remove h.t. leads.
