BrakesAbs6 accumulator
  1. Remove plugs from pump return hose and modulator, secure hose to modulator with banjo bolt, tighten to 35 Nm.
  2. Remove absorbant cloth from below modulator.
  3. Position battery tray, fit and tighten bolts to 9 Nm.
  4. Align pump feed hose clip and throttle cable bracket to battery tray, fit and tighten bolt to 9 Nm.
  5. Align pump feed hose bracket to battery tray, tighten bolt to 9 Nm.
  6. Connect air intake trunking between throttle housing and air cleaner, secure with clips.
  7. Connect breather pipe to air intake trunking and tighten clip.
  8. Secure breather hoses to clips on air intake trunking.
  9. Fit battery.
  10. Bleed brakes, see Adjustments.
  11. Bleed ABS6 high pressure system, see Adjustments.
  12. To ensure correct operation, the system MUST be tested using Microcheck.

ABS6 ACCUMULATOR

Service Repair No. 70.25.40

Remove

  1. Remove battery.
  2. Position absorbant cloth to collect any fluid spillage.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

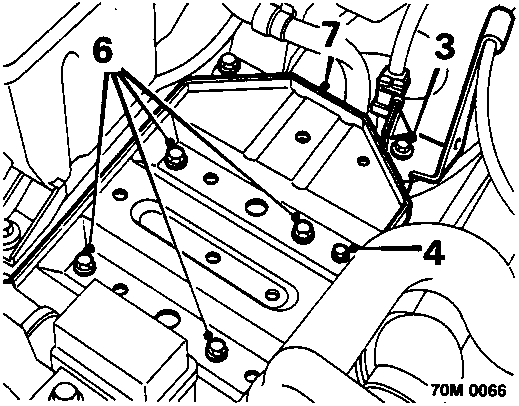

Diagram showing components 3, 4, 6, and 7 around the battery tray and pump feed hose
  1. Remove bolt securing pump feed hose clip and throttle cable bracket to battery tray.
  2. Remove bolt securing pump feed hose bracket to battery tray.
  3. Position pump feed hose aside.
  4. Remove 4 bolts securing battery tray to support bracket.
  5. Remove battery tray.

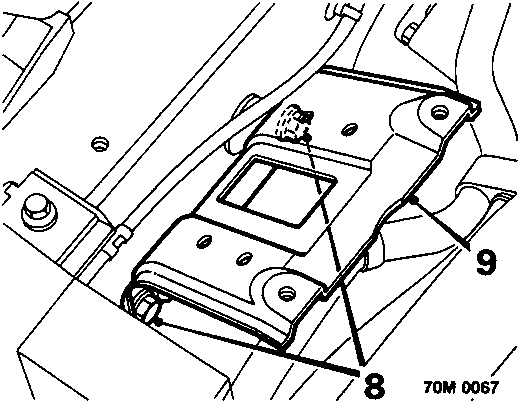

Diagram showing component 8 (bolts) and 9 (battery tray support bracket)
  1. Slacken 2 bolts securing battery tray support bracket to inner wing.
  2. Remove battery tray support bracket.

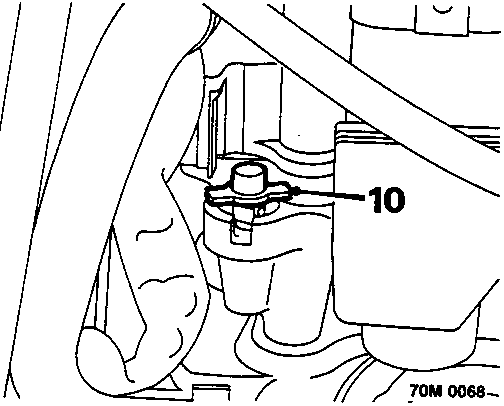

Diagram showing component 10, the modulator bleed screw area with protective cap
  1. Clean area around modulator bleed screw and remove protective cap.

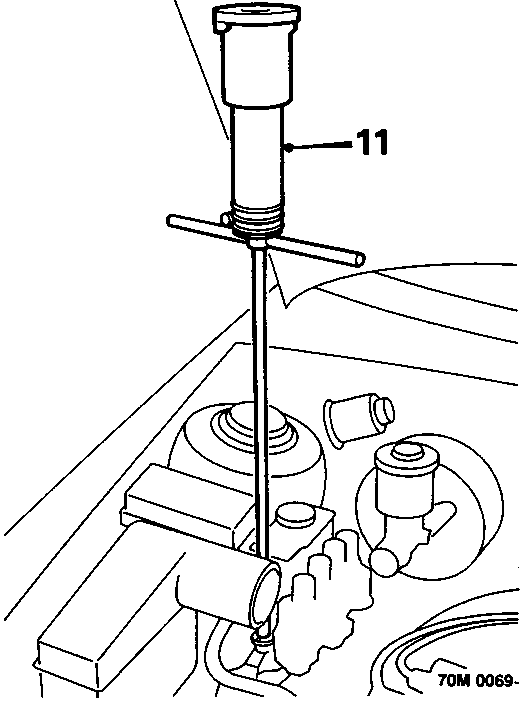

Diagram showing component 11, a 'T' wrench tool fitted to the bleed screw on the accumulator reservoir
  1. Fit 'T' wrench of tool SMD 4081 to bleed screw. Ensure filler cap is fitted to 'T' wrench reservoir.
  2. Slowly open bleed screw using 'T' wrench, allow brake fluid to enter 'T' wrench reservoir. Close bleed screw when fluid stops rising or when reservoir is full.
