Disc brake

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Disc brake
BrakesDisc brake

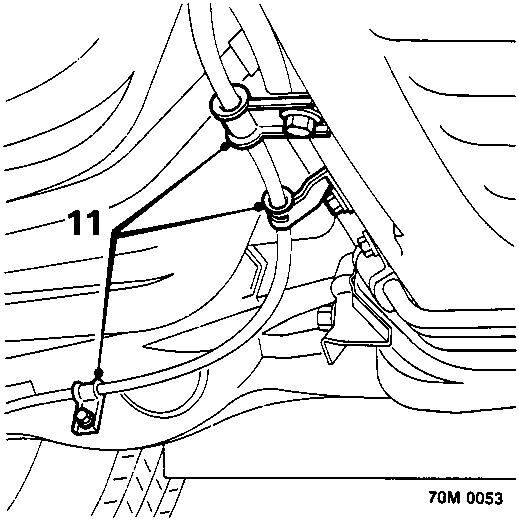

Diagram showing handbrake cable clips attached to body and suspension arm, callout 11
  1. Remove bolts, handbrake cable clips to body and suspension arm.

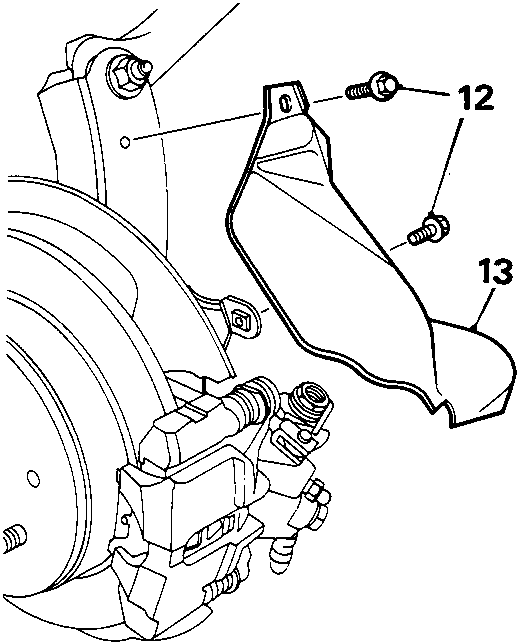

Diagram showing caliper shield secured by bolts, callouts 12 and 13

8RM 1065A

Disc brake

  1. Remove 2 bolts securing caliper shield.
  2. Remove caliper shield.

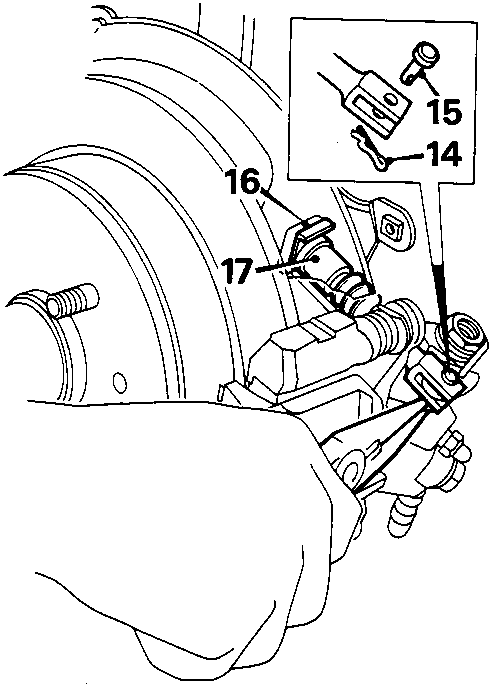

Diagram showing handbrake cable clevis pin, retaining clip, and abutment, callouts 14 through 17

8RM 1066

  1. Remove handbrake cable clevis pin clip.
  2. Remove handbrake cable clevis pin.
  3. Remove retaining clip, cable abutment.
  4. Release handbrake cable from abutment.

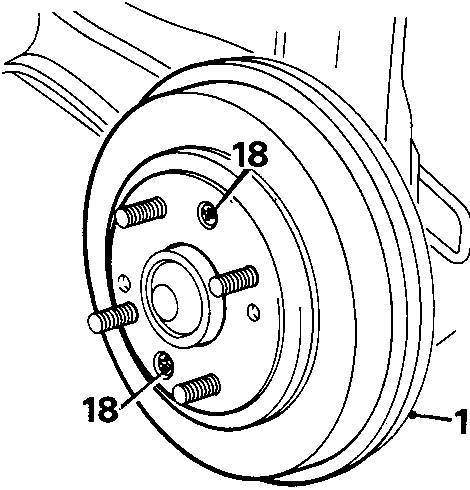

Diagram showing brake drum secured by screws, callouts 18 and 19

8RM 1068A

Drum brake

  1. Remove 2 screws securing brake drum.
  2. Remove brake drum.
