  1. Position ECU to hydraulic modulator, fit and tighten Torx screws.
  2. Connect multiplugs to ECU and engage metal clip
  3. Fit relay cover and secure with screw.

CAUTION: Ensure the relay cover is correctly located in guide over solenoid wires before tightening screw.

  1. Connect battery earth lead.
  2. To ensure correct operation, the system MUST be tested using Microcheck.

ABS2E HYDRAULIC MODULATOR

Service Repair No. 70.25.12

Remove

  1. Disconnect battery earth lead.
  2. Remove ECU from hydraulic modulator, see ABS2E hydraulic modulator ECU.

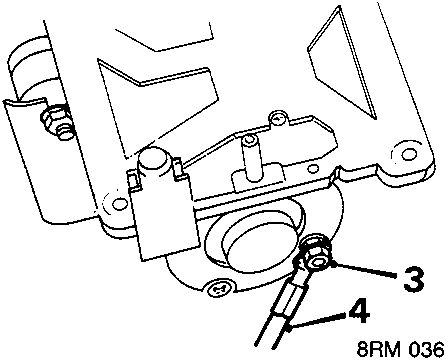

Diagram showing ECU mounted on hydraulic modulator with callout numbers 3 and 4 pointing to an earth lead connection. Figure code 8RM 0365A.
  1. Remove nut securing earth lead to hydraulic modulator.
  2. Disconnect earth lead and move aside.

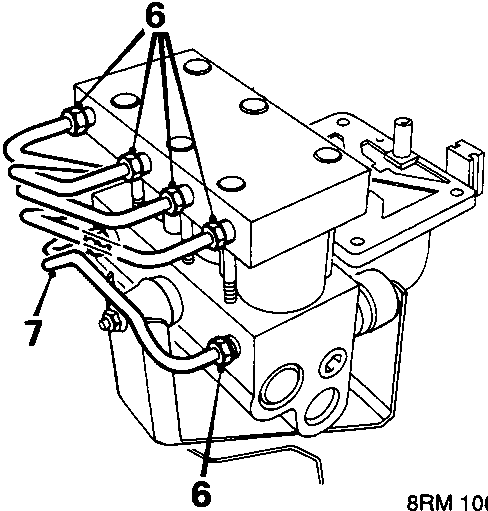

Diagram showing hydraulic modulator with multiple brake pipes connected. Callout number 6 points to pipe unions and callout number 7 points to a pipe. Figure code 8RM 1059A.
  1. Position absorbent cloth below modulator brake pipe unions to collect any spillage of brake fluid.
  2. Slacken brake pipe unions.
  3. Disconnect pipe unions from modulator.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

  1. Plug the ends of the brake pipes and the modulator ports.
