Refit

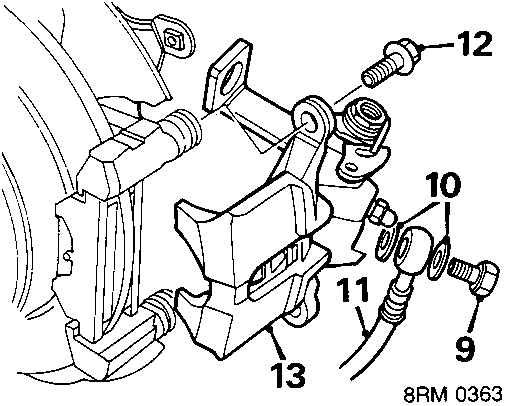

9. Remove brake hose banjo bolt.
10. Collect sealing washers.
11. Move hose aside. Plug hose and housing orifices.
12. Remove 2 bolts securing housing to carrier.
13. Remove housing from carrier.

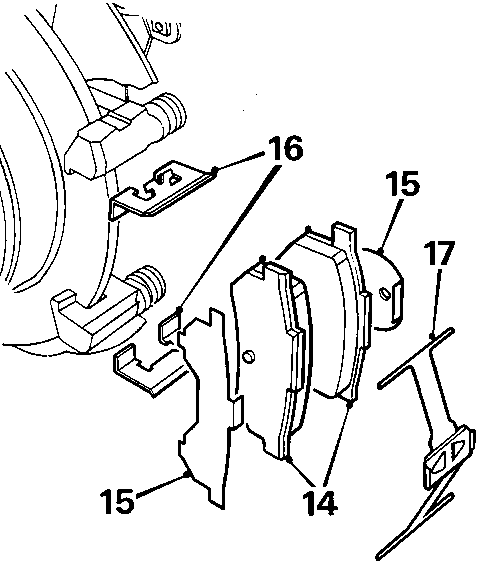

14. Remove brake pads.
15. Collect pad shims.
16. Collect retainers.
17. Remove pad spring from housing.

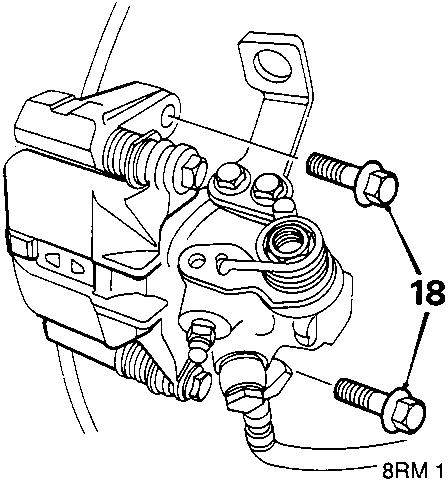

18. Remove 2 bolts securing carrier to suspension hub.
19. Remove carrier.

Refit

1. Position carrier to stub axle. Fit bolts and tighten to 40 Nm.
2. Fit pad spring to housing.
3. Fit retainers.
4. Wipe pads and pad shims clean, then lightly grease backs of pads.
5. Fit shims to pads.
6. Position pads and shims to housing.
7. Position housing to carrier. Fit bolts and tighten to 32 Nm.
8. Remove plugs from hose and housing orifices.
9. Wipe banjo bolt and sealing washers clean.
10. Position hose to housing. Position washers, fit banjo bolt and tighten to 38 Nm.
11. Fit handbrake cable to abutment. Fit retaining clip.
12. Wipe clevis pin clean then lubricate.
13. Align handbrake cable yoke to lever. Fit clevis pin and clevis pin clip.
14. Position caliper shield. Fit bolts and tighten to 10 Nm.
15. Bleed brakes, see Adjustments.
16. Adjust handbrake, see MAINTENANCE.
17. Fit road wheel and tighten nuts to 100 Nm.
18. Remove stand(s) and lower vehicle.
