BrakesAbs6 modulator
  1. To ensure correct operation, the system MUST be tested using Microcheck.

ABS6 MODULATOR

Service Repair No. 70.25.12

Remove

  1. Remove battery.

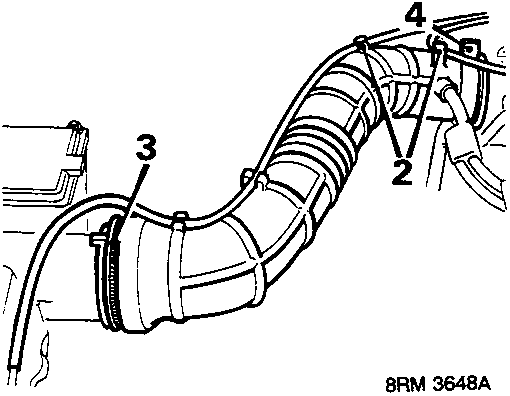

Diagram showing vacuum pipe and intake trunking connections with callout numbers 2, 3, and 4
  1. Disconnect vacuum pipe from air cleaner and intake trunking clips.
  2. Disconnect intake trunking from air cleaner and release from clips
  3. Slacken hose clip, remove intake trunking from throttle housing. Release clip and disconnect breather pipe from trunking.

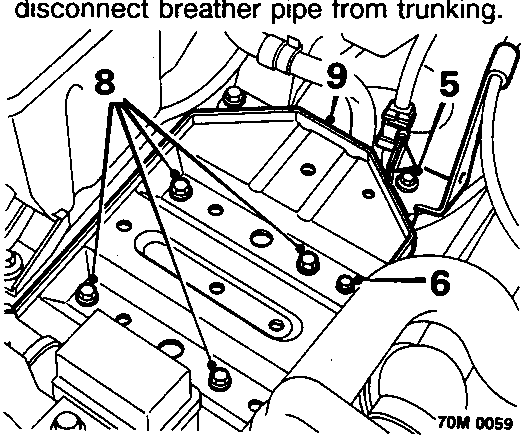

Diagram showing battery tray and pump feed hose bracket with callout numbers 5, 6, 8, and 9
  1. Remove bolt securing pump feed hose clip and throttle cable bracket to battery tray.
  2. Remove bolt securing pump feed hose bracket to battery tray.
  3. Position pump feed hose aside.
  4. Remove 4 bolts securing battery tray to support bracket.
  5. Remove battery tray.
  6. Position an absorbant cloth below modulator to collect any fluid spillage.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

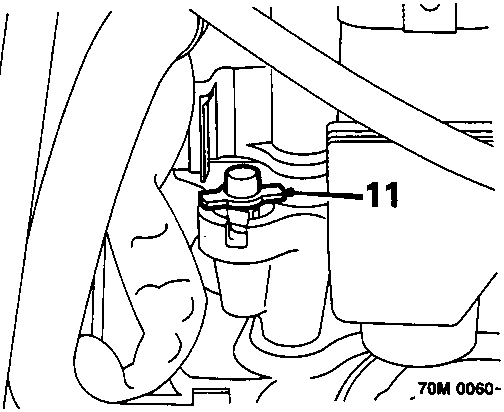

Diagram showing modulator bleed screw with callout number 11
  1. Clean area around modulator bleed screw and remove protective cap.

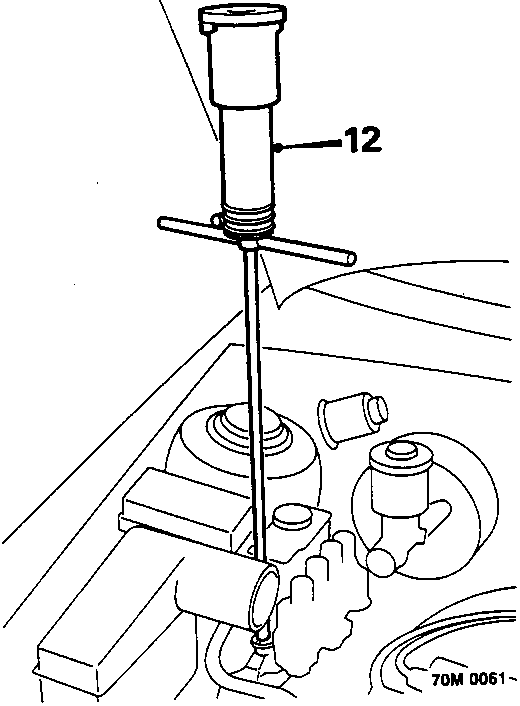

Diagram showing 'T' wrench tool SMD 4081 fitted to bleed screw with callout number 12
  1. Fit 'T' wrench of tool SMD 4081 to bleed screw. Ensure filler cap is fitted to 'T' wrench reservoir.
  2. Slowly open bleed screw using 'T' wrench, allow brake fluid to enter 'T' wrench reservoir. Close bleed screw when fluid stops rising or when reservoir is full.
  3. If reservoir becomes full, dispose of fluid and repeat operation until all pressure is released.
