Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual21 · Brakes
21 · Brakes

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
BrakesRemove

Service Repair No. 70.35.42

Remove

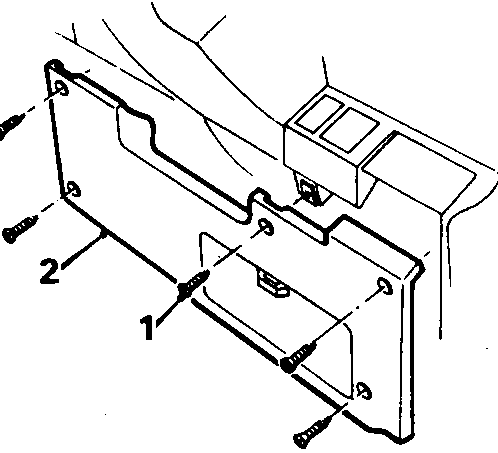

Diagram showing the fusebox cover secured by screws, with callout numbers 1 and 2

8RM 0334

  1. Remove 5 screws securing fusebox cover.
  2. Remove fusebox cover.

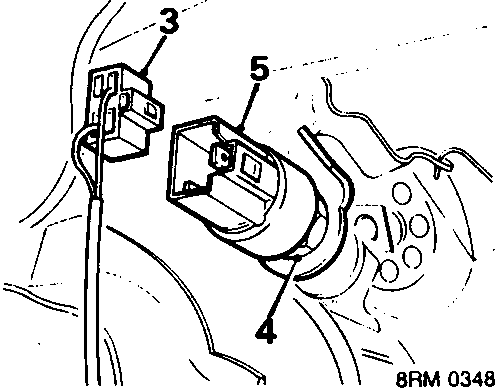

Diagram showing the stop light switch and multiplug connector, with callout numbers 3, 4, and 5

8RM 0348

  1. Disconnect multiplug from stop light switch.
  2. Slacken locknut.
  3. Remove switch.

Refit

  1. Fit switch.
  2. Reconnect multiplug.
  3. Adjust stop light switch, see Adjustments.
  4. Fit fusebox cover.

TWIN PRESSURE CONSCIOUS REDUCING VALVE – NON ABS

Service Repair No. 70.25.15

Note: The valve is designed so that in the event of an internal failure, brake fluid will seep from the plug 'A' as a tell-tale.

Remove

  1. Position a cloth below valve to collect spilled fluid.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

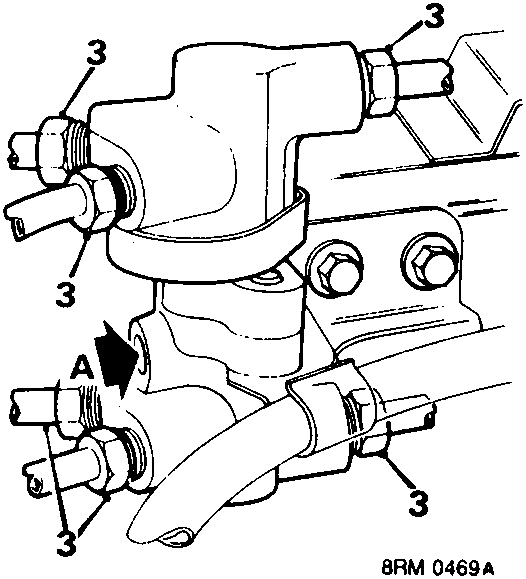

Diagram of the twin pressure conscious reducing valve showing pipe unions and plug A, with callout number 3

8RM 0469A

1.4 model illustrated

  1. Unscrew pipe unions, brake pipes to valve.
  2. Release pipes from valve.

CAUTION: Plug exposed pipe and valve orifices.
