Refit

Refit

1. Align ECU to ECU cover. Fit and tighten bolts.
2. Connect multiplugs to ECU
3. Position ECU to vehicle body frame. Fit and tighten nuts.
4. Align right-hand carpet to vehicle.
5. Reconnect Lucar connectors to luggage compartment lamp.
6. Fit luggage compartment lamp.
7. Check alignment of right-hand carpet. Fit and tighten carpet securing screws.
8. Fold back seat squab and lock in upright position.
9. Fit rear window tray.
10. Fit luggage compartment rear casing. Close tailgate.
11. To ensure correct operation, the system MUST be tested using Microcheck.

SERVO NON-RETURN VALVE - PLASTIC INLET MANIFOLD

Remove

Note: The non-return valve and hoses are renewed as an assembly.

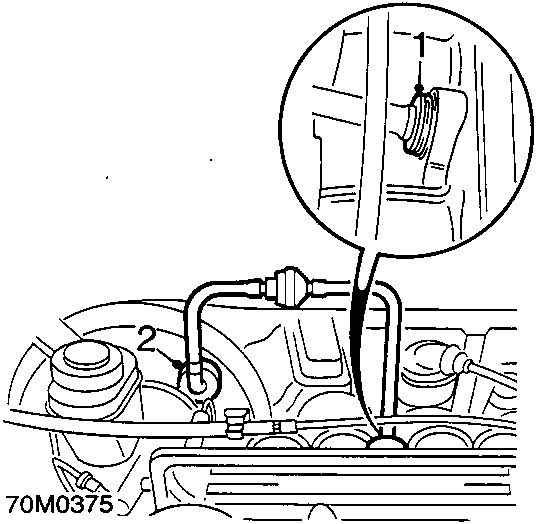

1. Depress plastic collar to release quick fit connector and disconnect servo hose from inlet manifold.
2. Carefully prise hose adaptor out of servo body, remove non-return valve and hoses.

Refit

1. Check hose adaptor grommet in servo body for damage, replace if necessary.
2. Position hose adaptor to servo body and press it into grommet.
3. Connect servo hose to inlet manifold.

CAUTION: Ensure hose is not kinked or twisted.
