Repairs › Remove
BrakesRemove

Service Repair No. 70.25.33

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

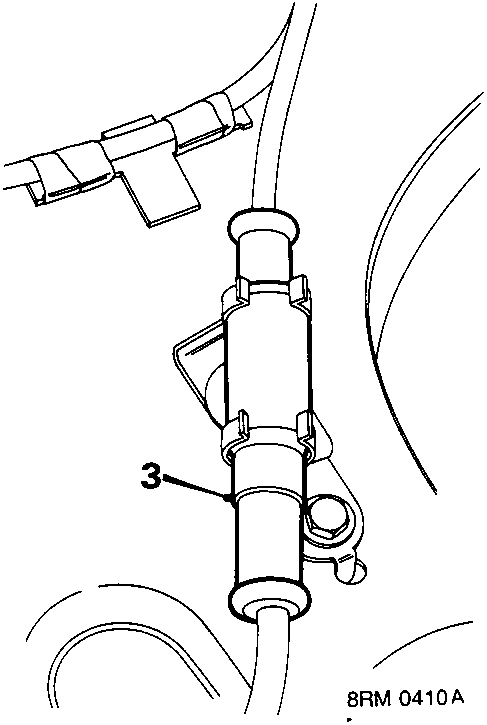

Diagram showing the sensor multiplug and body clips, with callout number 3 pointing to the multiplug connection point.
  1. Remove sensor multiplug from body clips. Disconnect multiplug.

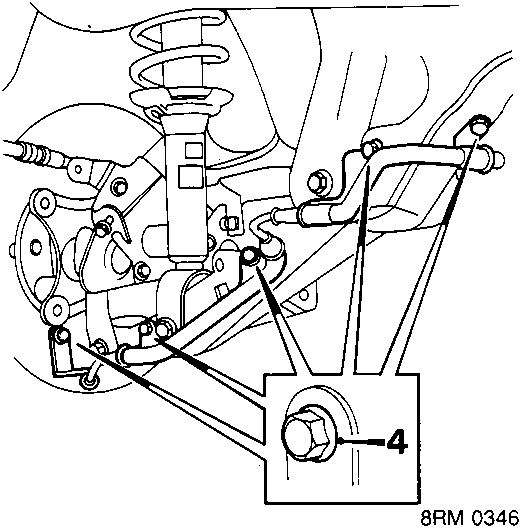

Diagram showing the rear suspension area with callout number 4 indicating the sensor lead brackets attached to the body, lower arm and suspension hub.
  1. Remove 5 bolts, sensor lead brackets to body, lower arm and suspension hub.

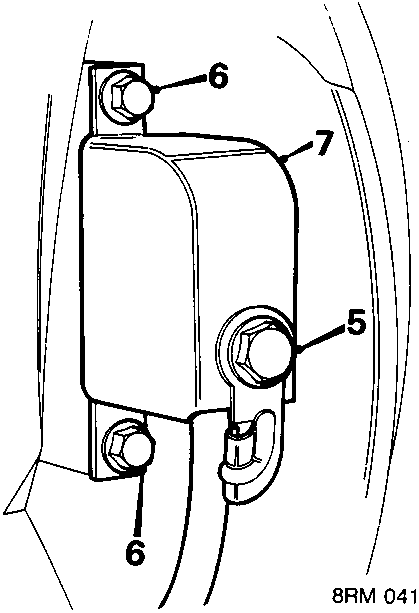

Diagram showing the sensor cover assembly with callout numbers 5, 6, and 7 indicating the strap, bolts, and cover respectively.
  1. Remove bolt and strap, strap to sensor cover.
  2. Remove 2 bolts, sensor cover to suspension hub.
  3. Remove sensor cover.

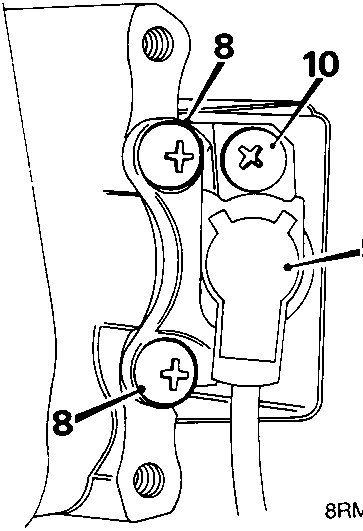

Diagram showing the sensor adapter and sensor assembly with callout numbers 8, 9, and 10 indicating the securing bolts, sensor/harness, and sensor-to-adapter screw.
  1. Remove 2 bolts securing sensor adapter to hub.
  2. Remove sensor and harness.
  3. Remove screw securing sensor to adapter.

Refit

  1. Clean mating faces of sensor and adapter plate.
  2. Smear body of sensor and adapter bore with Molycote FB180 or Rocol J166 grease before assembly.
  3. Fit sensor to adapter and secure with screw
  4. Align sensor adapter to hub. Fit and tighten bolts to 10 Nm.
  5. Fit sensor cover. Tighten cover bolts to 10 Nm.
  6. Fit strap to sensor cover and lead. Tighten bolt to 10 Nm.
