  1. Wipe sensor and hub face. Smear with grease.
  2. Fit sensor and align to hub. Tighten bolts to 10 Nm.
  3. Fit sensor cover. Tighten cover bolts to 10 Nm.
  4. Position harness shield to sensor cover. Fit and tighten bolt to 10 Nm.
  5. Position lead to hub, lower arm and body. Fit and tighten lead securing bolts to 10 Nm.
  6. Ensuring 'O' ring is in place, reconnect sensor multiplug.
  7. Secure multiplug to body clips.
  8. Fit road wheel and tighten nuts to 100 Nm.
  9. Remove stand(s) and lower vehicle.
  10. To ensure correct operation, the system MUST be tested using Microcheck.

ABS6 RELAYS

Service Repair No. 70.25.38

Remove

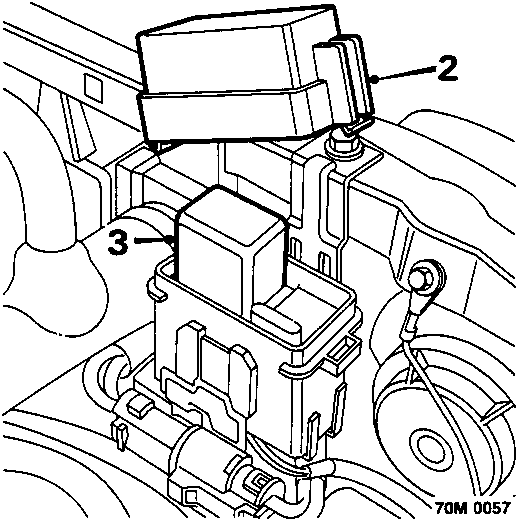

Relay box assembly showing relay cover secured by a clip, with callout numbers 2 and 3 indicating components.

Pump motor relay

  1. Release clip securing cover to relay box.
  2. Remove relay box cover.
  3. Remove relay.

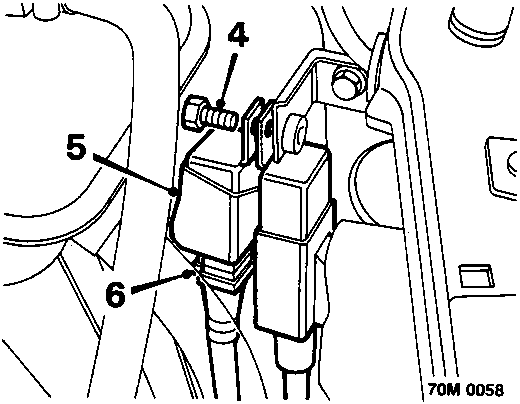

Relay mounting bracket showing relays connected to connectors, with a rubber boot folded back. Callout numbers 4, 5, and 6 indicate specific parts.

Failsafe relays

  1. Remove bolts securing relays to mounting bracket.
  2. Fold back rubber boot.
  3. Release clip and disconnect connectors from relays.

Refit

Pump motor relay

  1. Fit relay into relay box.
  2. Fit cover to relay box,

Failsafe relays

  1. Connect relays to connectors.
  2. Fold down rubber boot to cover connector.
  3. Position relays to mounting bracket, fit bolt and tighten to 9 Nm.
