Repairs › Refit
BrakesRefit

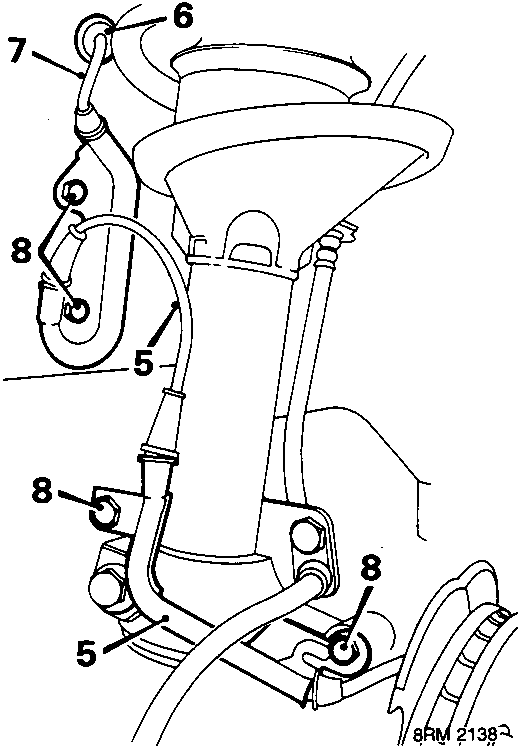

Diagram of front hub and suspension area showing sensor harness routing with callout numbers 5, 6, 7, and 8
  1. Release sensor lead from harness.
  2. Release grommet, sensor lead to wing valance.
  3. Pull sensor lead through wing valance.

Refit

  1. Clean mating faces of sensor and hub. Smear with grease.
  2. Fit sensor to front hub. Tighten bolts to 22 Nm.
  3. Fit bracket with sensor harness to front hub, tighten bolts to 10 Nm.
  4. Align and fit sensor harness brackets to suspension arm and wing valance.
  5. Pass sensor lead through grommet hole in wing valance.
  6. Fit sensor harness grommet to wing valance.
  7. Ensuring 'O' ring is in place, reconnect sensor harness multiplug.
  8. Fit multiplug to bracket.
  9. Position and secure under – bonnet fusebox.
  10. Fit road wheel and tighten nuts to 100 Nm.
  11. Remove stand(s) and lower vehicle.
  12. To ensure correct operation, the system MUST be tested using Microcheck.

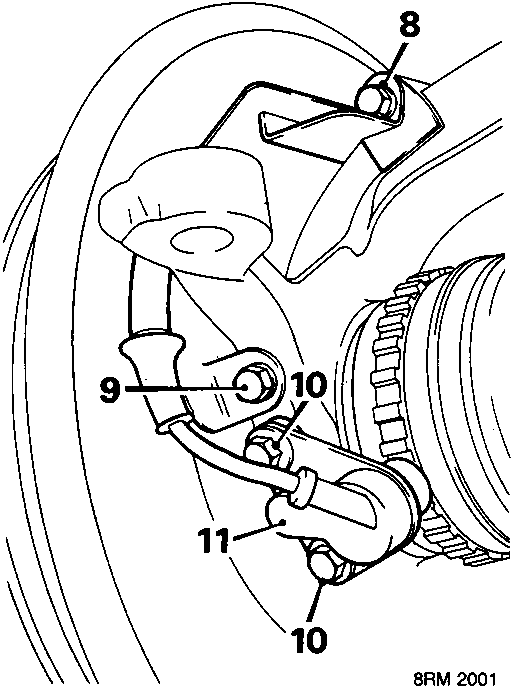

Diagram of front hub and brake assembly showing sensor harness bracket and bolt locations with callout numbers 8, 9, 10, and 11
  1. Remove 4 bolts from sensor lead brackets to wing valance and suspension arm. Release brackets with sensor harness.
  2. Remove bolt, sensor harness bracket to front hub. Release bracket with harness from hub.
  3. Remove 2 bolts, sensor to hub.
  4. Remove sensor with lead from hub.
