Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual21 · Brakes
21 · Brakes

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
BrakesRemove

Service Repair No. 70.55.02

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

Note: Front brake pads used with 241 mm discs are not interchangeable with those used with 266 mm discs.

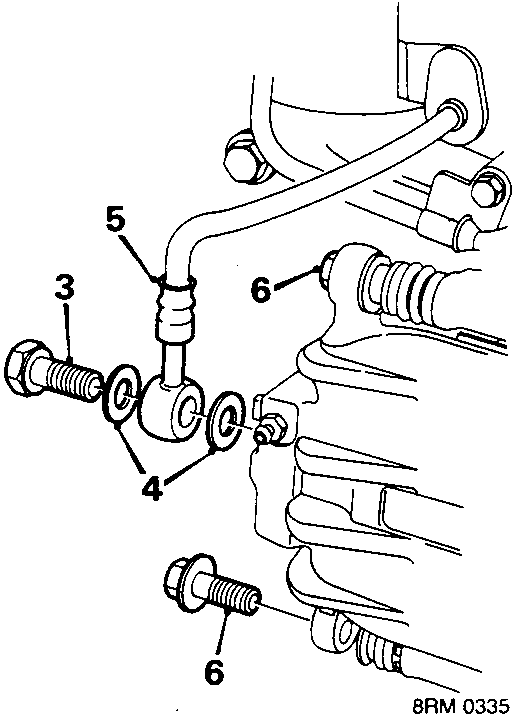

Diagram showing removal of brake hose banjo bolt, washers, and caliper guide pins (callout numbers 3, 4, 5, 6).
  1. Remove brake hose banjo bolt.
  2. Discard washers.
  3. Move hose aside. Plug hose banjo and housing connections.
  4. Remove 2 bolts from caliper guide pins.
  5. Remove caliper housing.

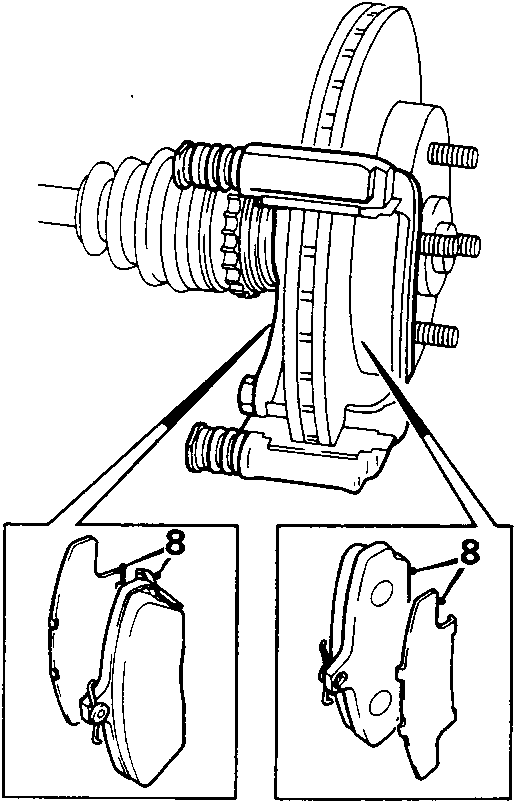

Diagram showing removal of brake pads and shims from the carrier (callout number 8).
  1. Remove brake pads and shims.

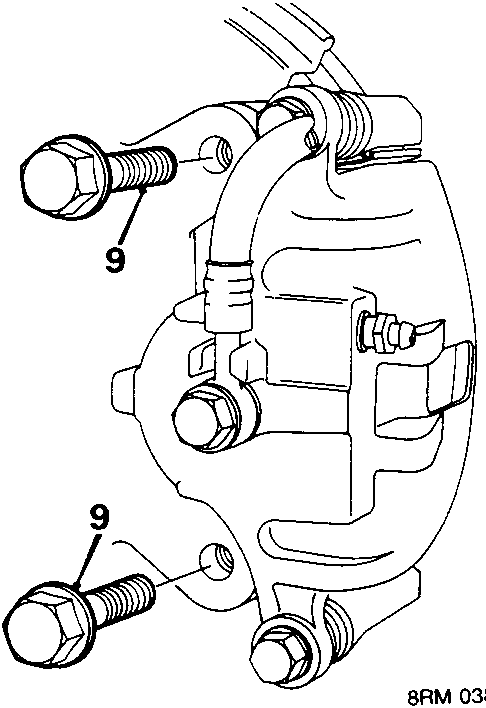

Diagram showing removal of bolts securing the carrier to the hub (callout number 9).
  1. Remove 2 bolts securing carrier to hub.
  2. Remove carrier.
