Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual21 · Brakes
21 · Brakes

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
BrakesRemove

Service Repair No. 70.25.32

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

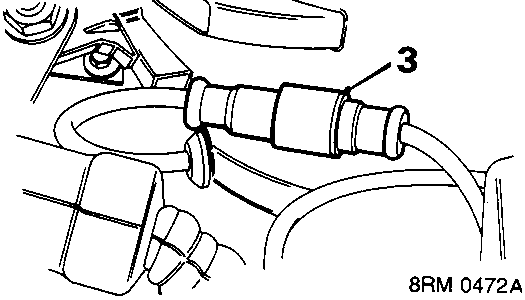

Diagram showing sensor harness multiplug connection labeled with callout number 3
  1. Disconnect sensor harness multiplug.

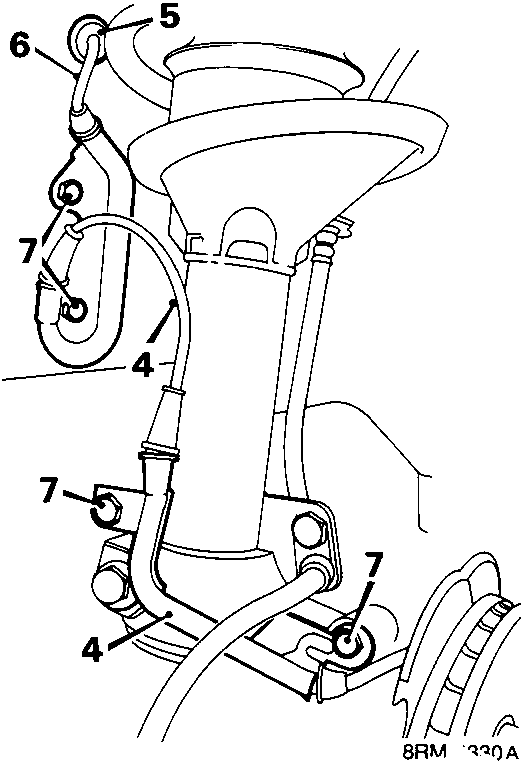

Diagram showing release of sensor lead from harness, grommet and wing valance with callout numbers 4, 5, 6, 7
  1. Release sensor lead from harness.
  2. Release grommet, sensor lead to wing valance.
  3. Pull sensor lead through wing valance.

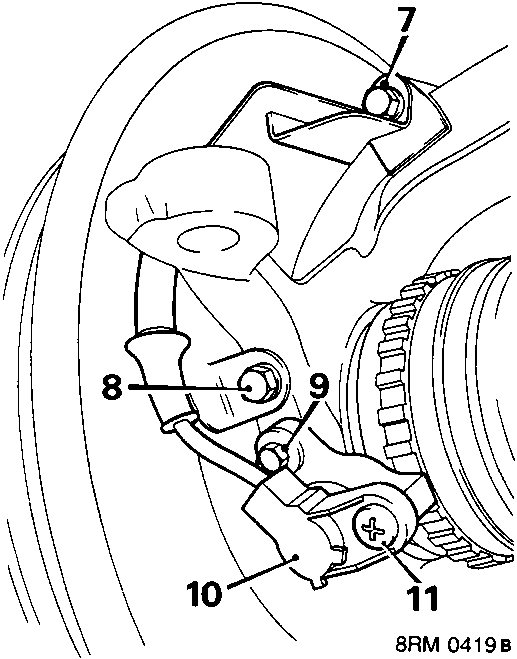

Diagram showing removal of bolts from sensor lead brackets, sensor harness bracket, sensor adapter and screw securing sensor to adapter with callout numbers 7, 8, 9, 10, 11
  1. Remove 4 bolts from sensor lead brackets to wing valance and suspension arm. Release brackets with sensor harness.
  2. Remove bolt, sensor harness bracket to front hub. Release bracket with harness from hub.
  3. Remove 2 bolts securing sensor adapter to hub.
  4. Remove sensor and harness.
  5. Remove screw securing sensor to adapter.

Refit

  1. Clean mating faces of sensor and adapter plate.
  2. Smear body of sensor and adapter bore with Molycote FB180 or Roccol J166 grease before assembly.
  3. Fit sensor to adapter and secure with screw
  4. Align sensor adapter to front hub. Tighten bolts to 22 Nm.
  5. Fit bracket with sensor harness to front hub, tighten bolts to 10 Nm.
  6. Align and fit sensor harness brackets to suspension arm and wing valance.
  7. Pass sensor lead through grommet hole in wing valance.
  8. Fit sensor harness grommet to wing valance.
  9. Check that 'O' ring is in place, reconnect sensor harness multiplug, ensure that both halves are correctly engaged.
  10. Secure sensor multiplug to under – bonnet bracket.
  11. Fit road wheel and tighten nuts to 100 Nm.
  12. Remove stand(s) and lower vehicle.
  13. To ensure correct operation, the system MUST be tested using Microcheck.
