Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual21 · Brakes
21 · Brakes

Run - out exceeds limit

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Run - out exceeds limit
BrakesRun - out exceeds limit

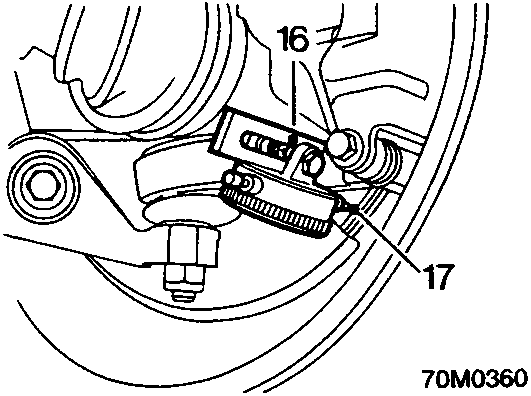

Diagram of a dial test indicator probe positioned against a brake disc caliper assembly, with callout numbers 16 and 17.
  1. Mount a dial test indicator to caliper lower mounting hole using tool 18G 191-9.
  2. Position dial test indicator probe 6 mm from disc outer edge.
  3. Rotate disc at least one complete turn and measure disc run - out.

Front disc run - out limit with wheel on = 0.060 mm.

Run - out exceeds limit

  1. Mark wheel to stud relationship. Remove wheel, again check mating surfaces for contaminants, then refit wheel 90° from previous position and recheck run - out.
  2. If run - out is still excessive, move wheel through a further 90° and recheck run - out.
  3. If run - out is still excessive, fit a new road wheel.

Run - out within limit

  1. Remove dial test indicator and tool 18G 191-9.
  2. Fit caliper lower mounting bolt and tighten to 80 Nm.
  3. Remove stand(s) and lower vehicle.

REAR BRAKE DISC

Service Repair No. 70.10.33

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

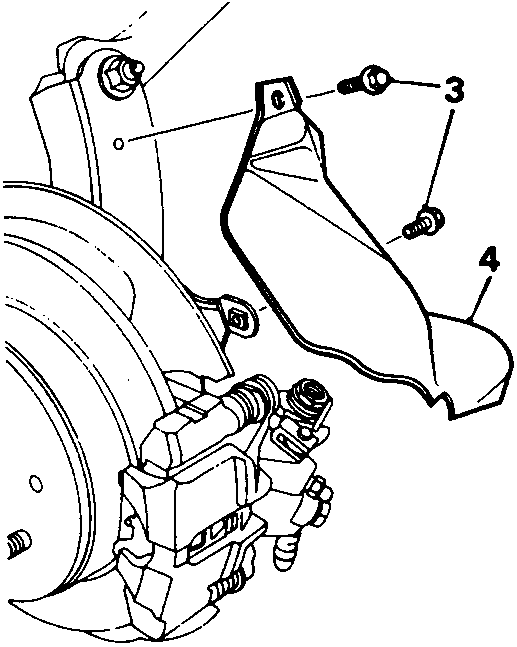

Diagram showing the rear brake caliper shield being removed, with callout numbers 3 pointing to bolts and 4 pointing to the shield itself.
  1. Remove 2 bolts securing caliper shield.
  2. Remove caliper shield.

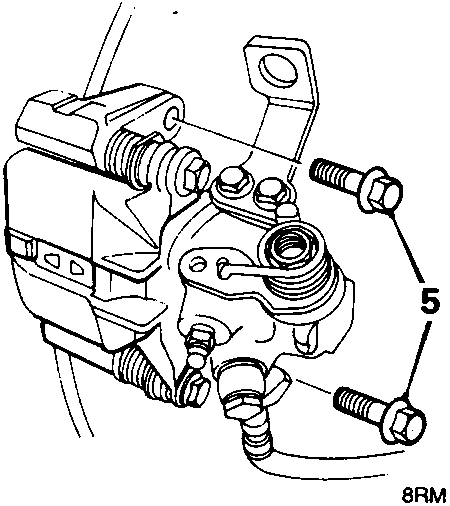

Diagram showing the rear brake caliper attached to the stub axle, with callout number 5 pointing to the two bolts securing it.
  1. Remove 2 bolts securing brake caliper to stub axle.
