Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual21 · Brakes
21 · Brakes

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
BrakesRemove

Service Repair No. Servo Assembly – 70.50.01

Remove

ABS6 models

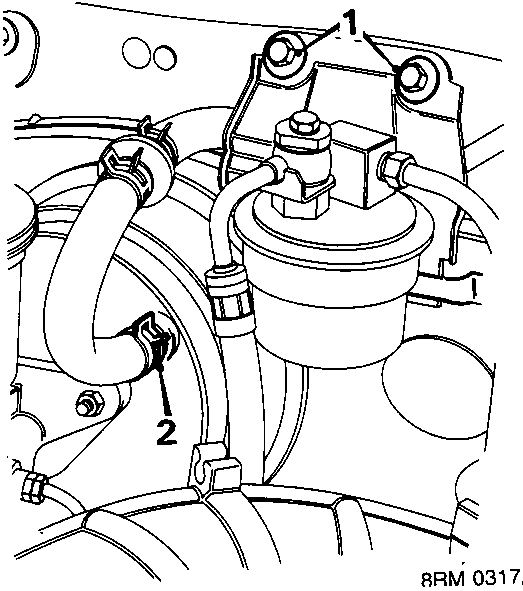

Diagram showing bolts securing fuel filter to bulkhead and clip securing servo hose to servo
  1. Remove 2 bolts securing fuel filter to bulkhead.
  2. Release clip securing servo hose to servo.
  3. Position fuel filter and servo hose aside.

ABS2E models – Alloy inlet manifold

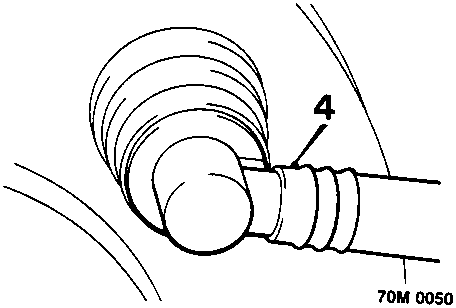

Diagram showing non-return valve grommet in servo
  1. Release non – return valve from grommet in servo.
  2. Position non – return valve aside.

ABS2E models – plastic inlet manifold

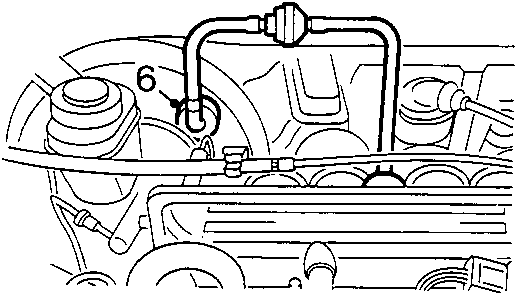

Diagram showing hose adaptor on servo body
  1. Carefully prise hose adaptor out of servo body.

All models

  1. Remove brake master cylinder, see Brake master cylinder and fluid level switch.
  2. Plug open pipe ends and exposed valve/master cylinder orifices.

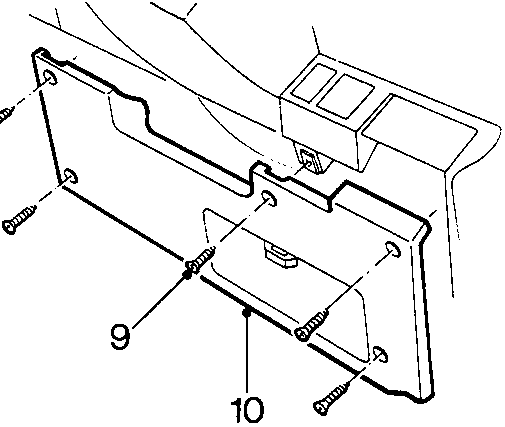

Diagram showing screws securing fascia fuse box cover
  1. Remove 5 screws securing fascia fuse box cover.
  2. Remove cover.
