BrakesRemove

Service Repair No. 70.60.19

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Release handbrake.

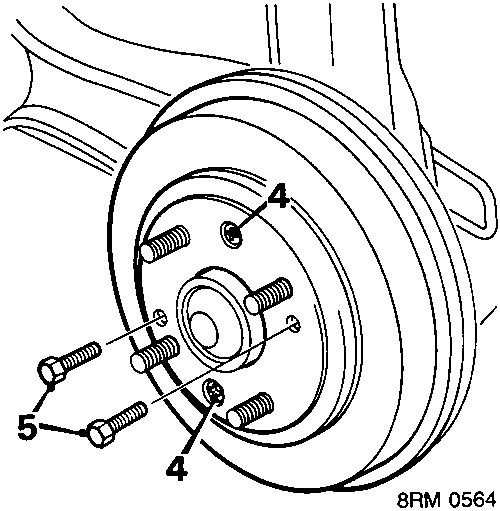

Diagram showing brake drum with two screws labeled 4 and jacking screw labeled 5 securing it to the hub.
  1. Remove 2 screws securing brake drum. If necessary, use jacking screws to release drum.
  2. Remove brake drum. Ease drum from hub using 2 screws.

If drum cannot be removed due to a wear/corrosion lip:

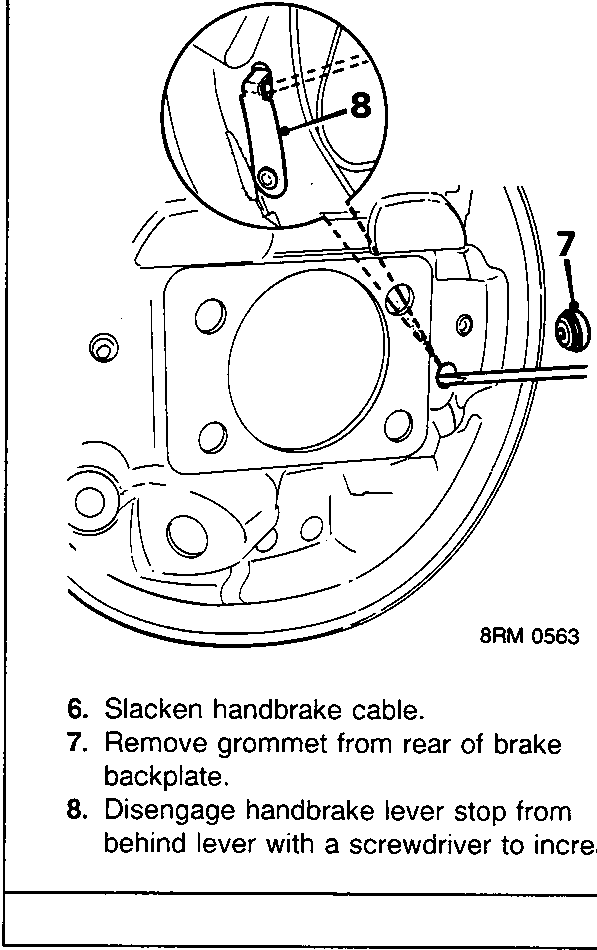

Diagram showing the rear of the brake backplate with a grommet labeled 7 and a handbrake lever stop labeled 8 being disengaged.
  1. Slacken handbrake cable.
  2. Remove grommet from rear of brake backplate.
  3. Disengage handbrake lever stop from behind lever with a screwdriver to increase shoe to drum clearance, withdraw brake drum.

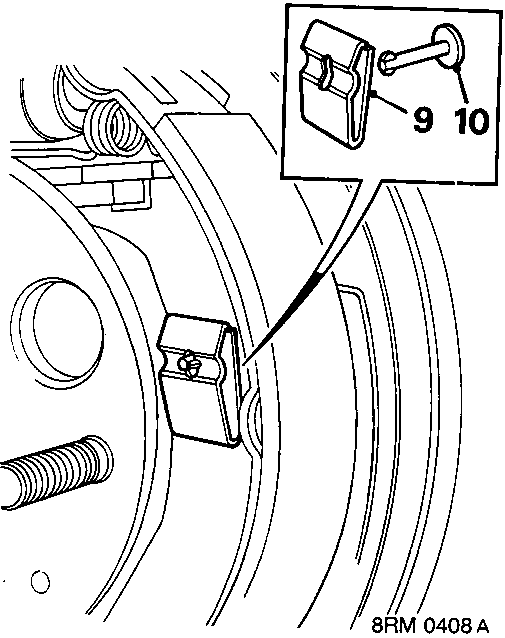

Diagram showing the inside of the brake assembly with brake shoe retaining pin springs labeled 9 and retaining pins labeled 10.
  1. Remove 2 brake shoe retaining pin springs.
  2. Remove 2 brake shoe retaining pins.

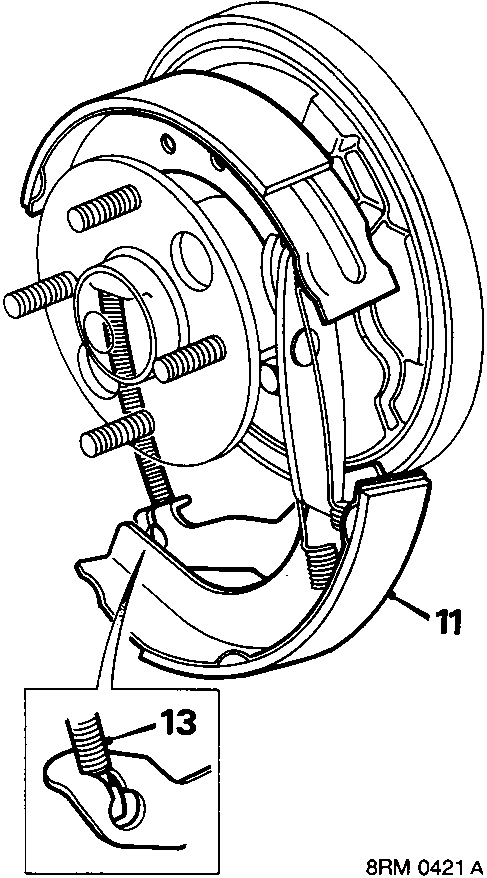

Diagram showing brake shoes released from the wheel cylinder and abutment, with the lower return spring labeled 13 being removed.
  1. Release brake shoes from wheel cylinder and abutment.
  2. Release and remove lower return spring from brake shoes.
