ABS6 ELECTRONIC CONTROL UNIT – 4 DOOR

Service Repair No. 70.25.34

Remove

  1. Open luggage compartment.

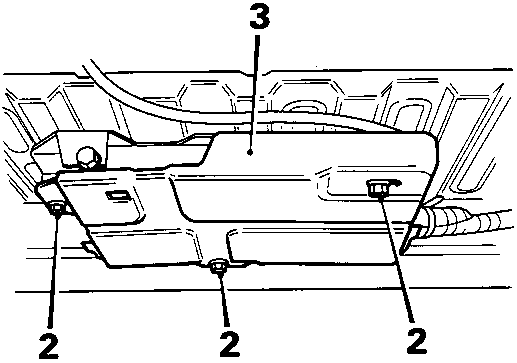

Diagram showing ECU cover secured by screw studs (2) and a cable (3) in the luggage compartment
  1. Slacken 3 screw studs securing ECU cover.
  2. Remove ECU cover, pull cover to rear of car to disengage mounting hole slots from screw studs then lower cover to clear.

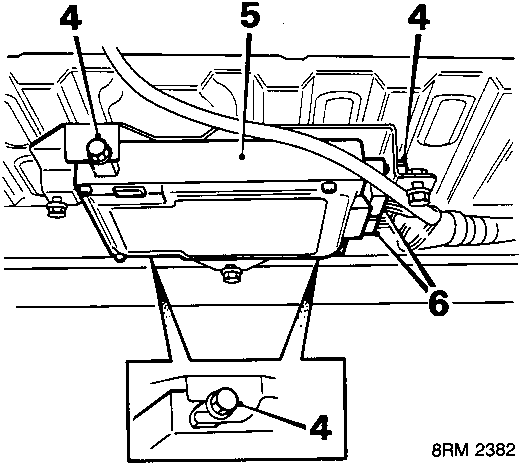

Diagram showing ECU mounted on frame with nuts (4), mounting studs (5), and multiplug connector (6) being disconnected
  1. Slacken 3 nuts securing ECU to mounting frame.
  2. Slide ECU towards rear of car to disengage mounting studs from mounting frame.
  3. Disconnect multiplugs from ECU.

Refit

  1. Connect multiplugs to ECU.
  2. Position ECU and engage mounting studs, Tighten nuts to 10 Nm.
  3. Position ECU cover, on mounting studs, tighten studs to 10 Nm.
  4. Close luggage compartment.
  5. To ensure correct operation, the system MUST be tested using Microcheck.

ABS6 ELECTRONIC CONTROL UNIT – 3 AND 5 DOOR

Service Repair No. 70.25.34

Remove

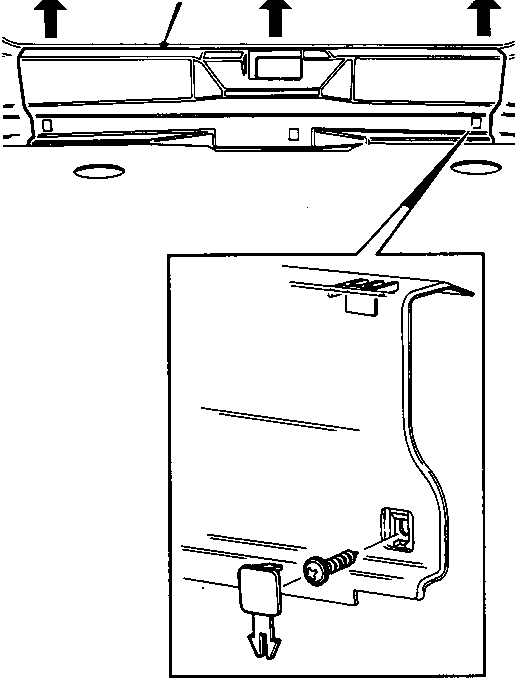

Diagram showing rear centre casing (1) being removed from luggage compartment
  1. Remove luggage compartment rear centre casing.

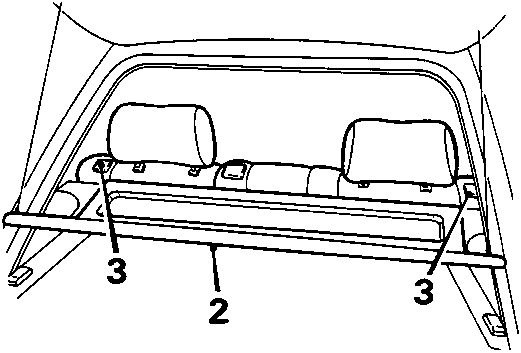

Diagram showing rear window tray (2) and rear seat squab (3) in 3 or 5 door model
  1. Remove rear window tray.
  2. Release rear seat squab and fold seat forward.
