Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual21 · Brakes
21 · Brakes

Abs6 electronic control unit – 4 door (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
BrakesAbs6 electronic control unit – 4 door · page 2 of 2

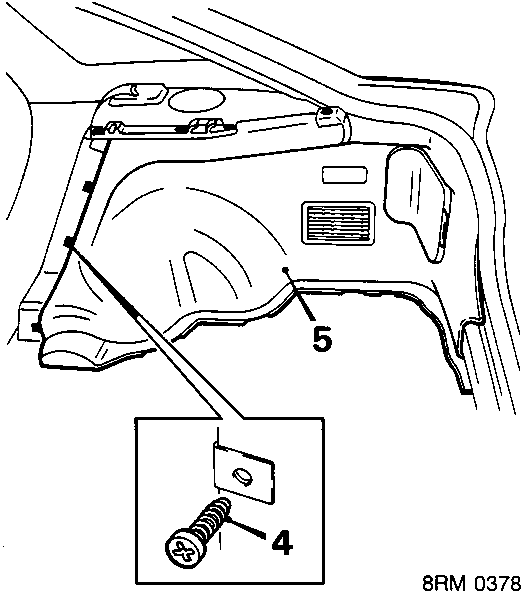

Diagram showing the right-hand carpet area with callout numbers 4 and 5, and an inset detail of a screw securing the carpet.
  1. Remove screws securing right – hand carpet.
  2. Release right – hand carpet.

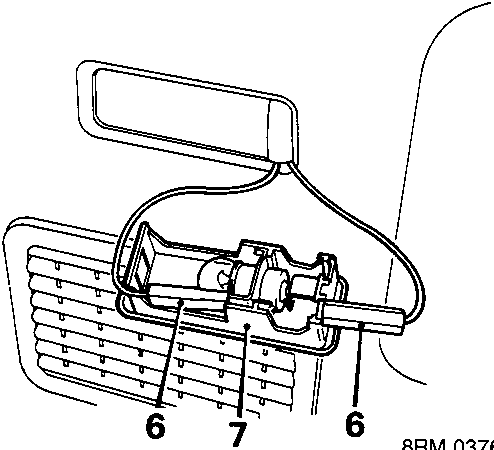

Diagram of the luggage compartment lamp assembly with callout numbers 6 and 7 showing connector locations.
  1. Disconnect Lucar connectors from luggage compartment lamp.
  2. Remove luggage compartment lamp.

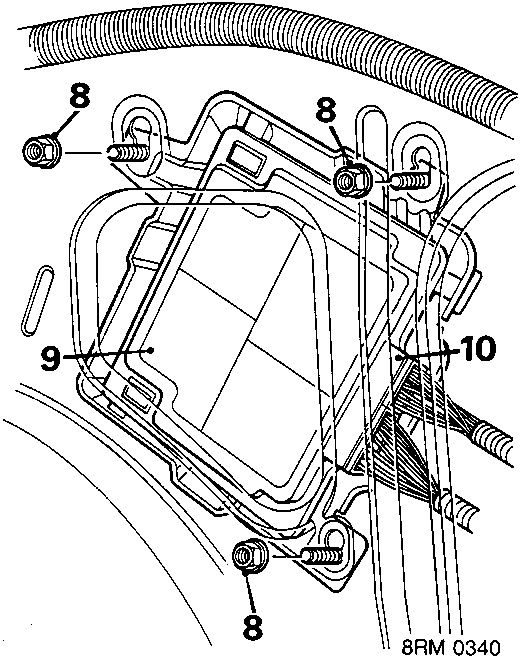

Diagram showing the ECU mounted in the vehicle body frame with callout numbers 8, 9, and 10 indicating mounting nuts and wiring.
  1. Remove 3 mounting nuts, ECU to body frame.
  2. Withdraw ECU from vehicle.

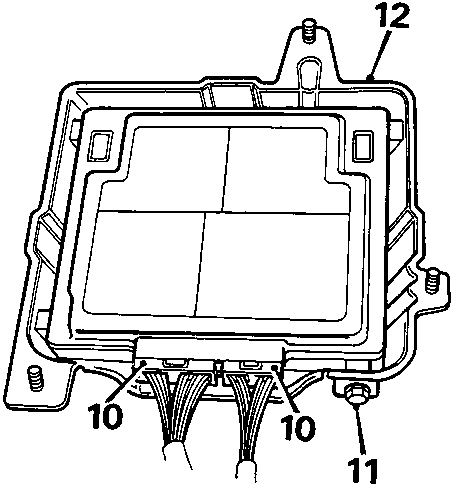

Diagram of the ECU unit with its cover removed, showing callout numbers 10, 11, and 12 for multiplugs, bolts, and the cover.
  1. Disconnect multiplugs from ECU
  2. Remove 4 bolts, ECU to ECU cover.
  3. Remove cover from ECU
