Anti-theft device

ANTI-THEFT DEVICE

For the description and diagnosis see "Electric system Diagnosis".

REMOVAL/REFITTING CONTROL UNIT-SIREN

• Disconnect the battery (-) terminal.
• Remove the luggage compartment protective trim (see GROUP 70).

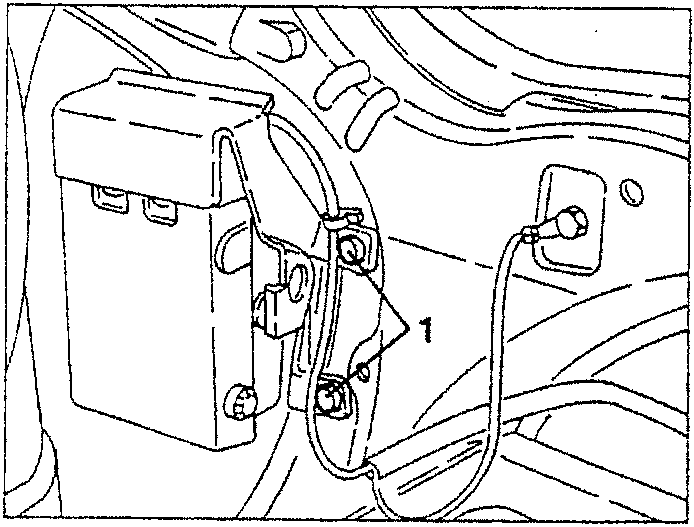

1. Remove the trim just enough and slacken the two screws fastening the alarm system control unit-siren support bracket.

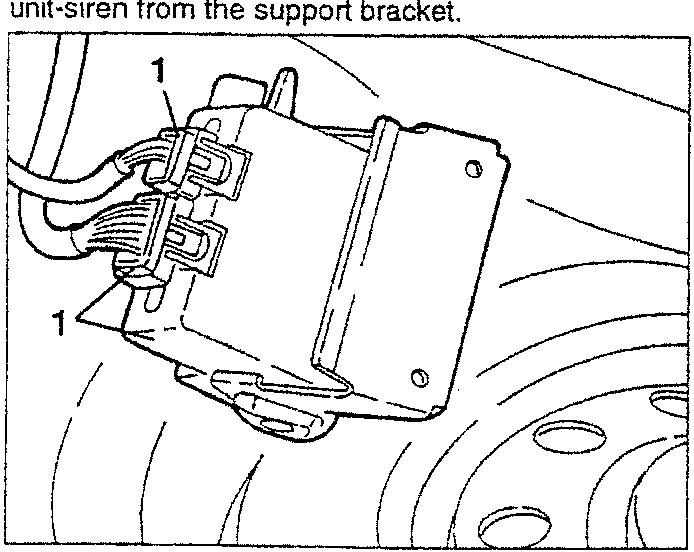

1. Disconnect the two electrical connections and remove the control unit-siren complete with support bracket.
2. On the bench, if necessary, separate the control unit-siren from the support bracket.

REMOVAL/REFITTING RECEIVER FOR REMOTE CONTROL AND VOLUMETRIC SENSORS

• Disconnect the battery (-) terminal.

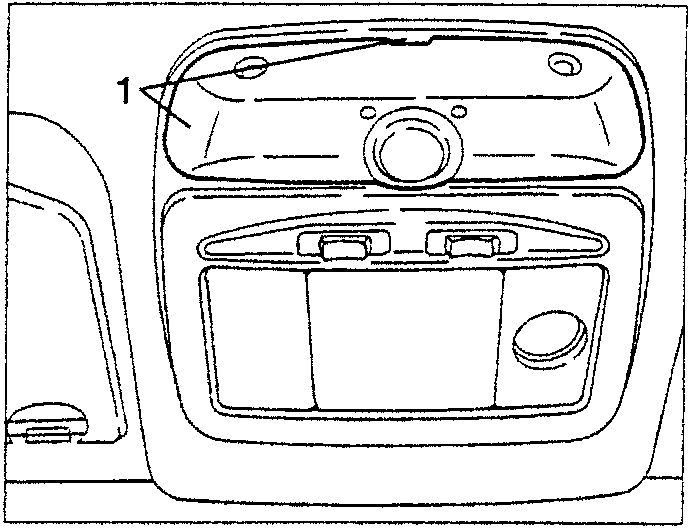

1. Working on the points illustrated, remove the receiver and volumetric sensor support plate.

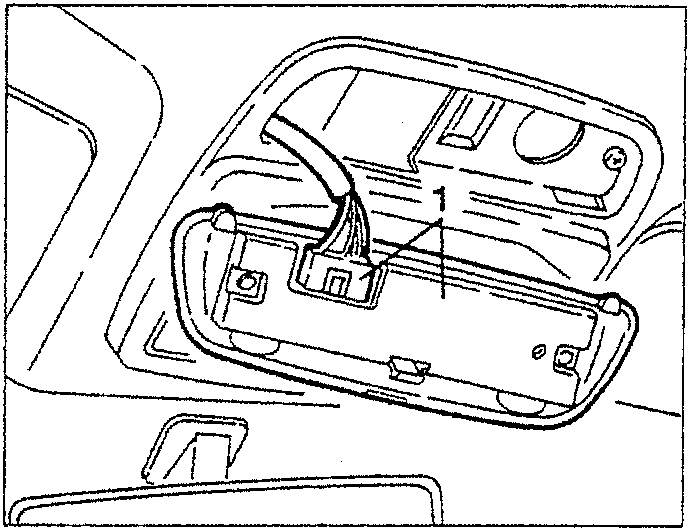

1. Disconnect the connection and remove the receiver-sensor assembly complete with plate.
2. On the bench, slacken the two fastening screws and separate the plate from the receiver - volumetric sensors.

REMOVAL/REFITTING BONNET OPEN DETECTION SWITCH

• Disconnect the battery (-) terminal.

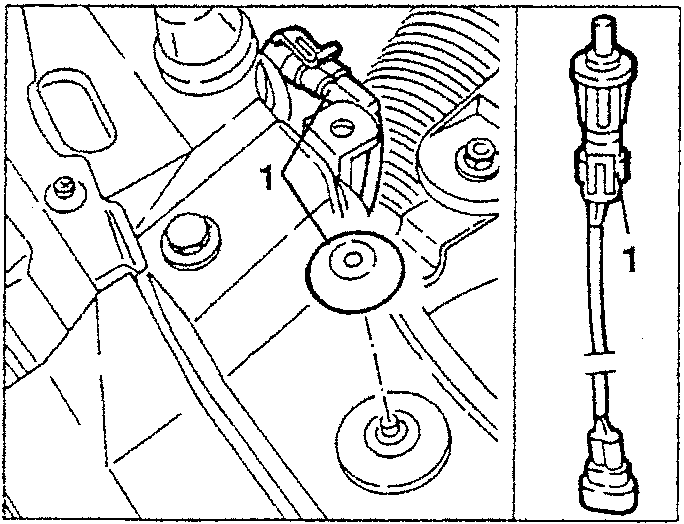

1. Disconnect the electrical connection, remove the upper finishing, then prise and remove the switch complete with wiring from its housing.
