145 electrical system diagnosisCar radio

CAR RADIO

REMOVAL/REFITTING

  • Disconnect the battery (-) terminal.

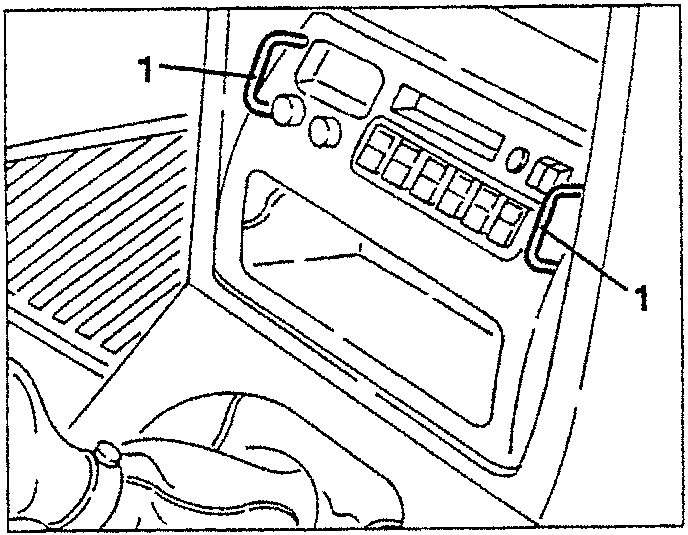

  1. Insert the special removal brackets in the holes provided on the radio as illustrated.
Illustration showing special removal brackets inserted into holes on the car radio

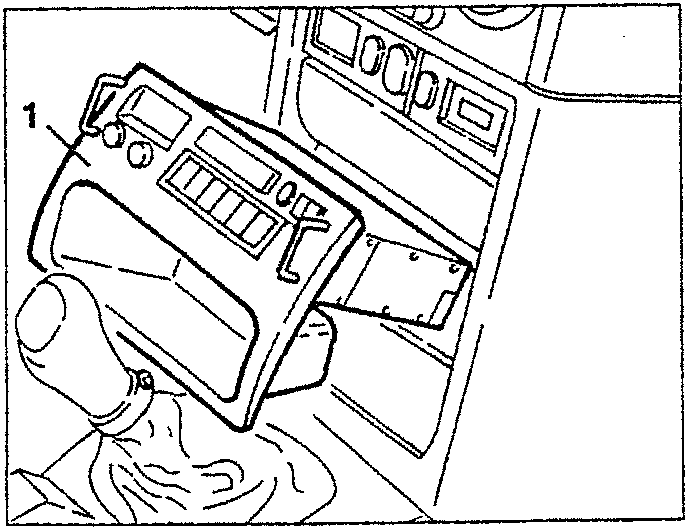

  1. Withdraw the radio from its compartment just enough.
Illustration showing the radio being withdrawn from its compartment

REMOVAL/REFITTING

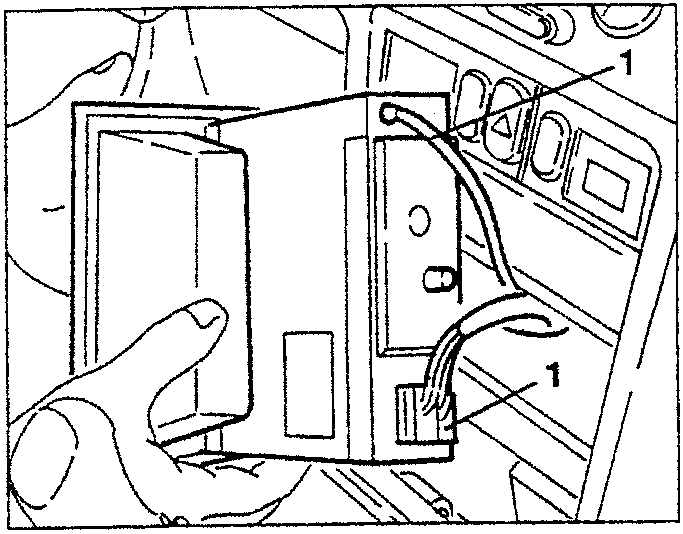

  1. Disconnect the electrical connection and the radio aerial coaxial cable from the radio, then remove the radio.
Illustration showing hands disconnecting electrical connection and coaxial cable from the radio
  • On the bench, if necessary, separate the front frame - utility compartment from the radio.

CAR RADIO AERIAL

REMOVAL/REFITTING

  • Remove the front passenger compartment roof lamp (see GROUP 55).
  1. Remove the protection cap, slacken the nut fastening the coaxial cable and aerial, then working from outside the car, remove the aerial.
Illustration showing removal of the radio aerial with a long rod tool
