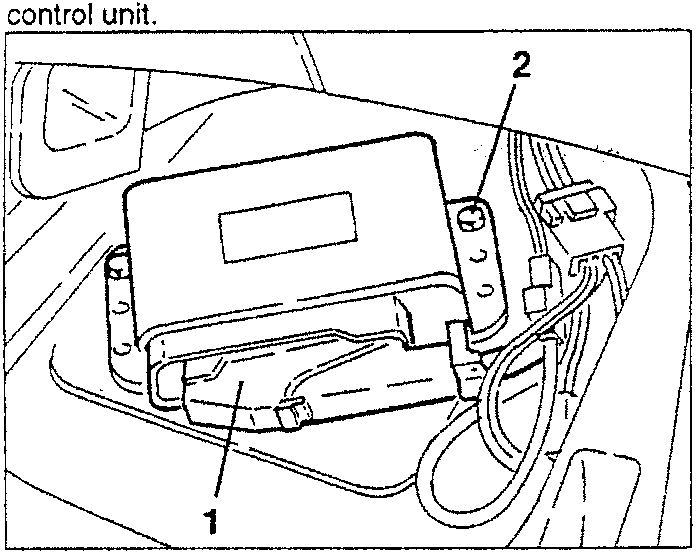

Door lock control unit

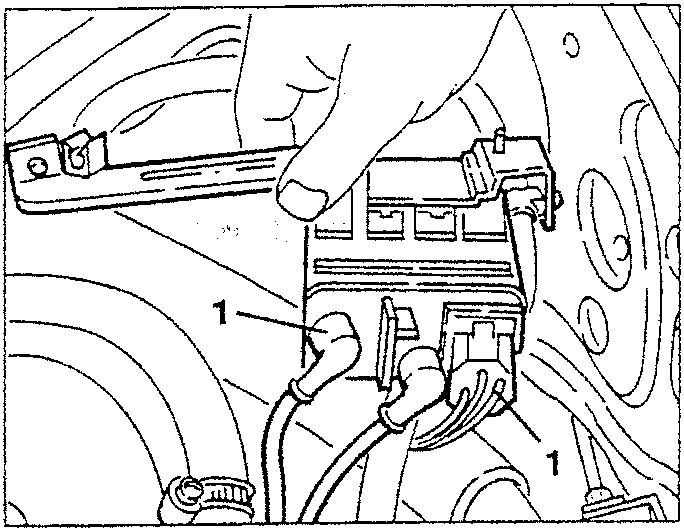

1. Disconnect the combs from the control unit.
   2. Slacken the fastening screws and remove the control unit.

DOOR LOCK CONTROL UNIT

REMOVAL/REFITTING

• Disconnect the battery (-) terminal.

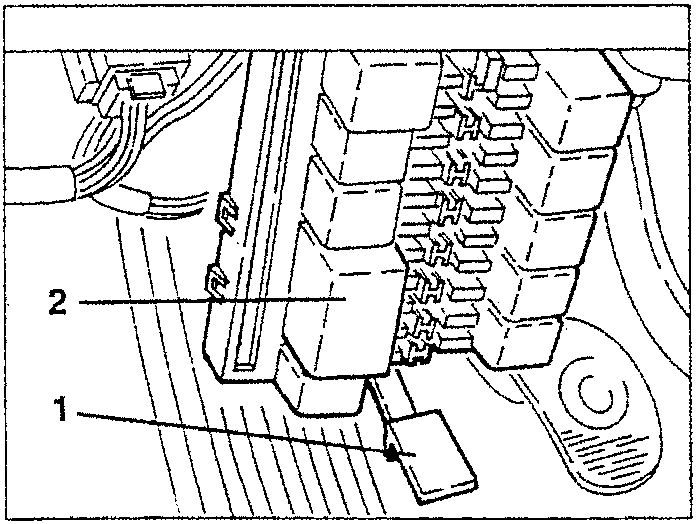

  1. Use the special lever to lower the fuse box.
  2. Remove the door lock control unit.

GLOW PLUG WARMING CONTROL UNIT (1929 TD)

REMOVAL/REFITTING

• Remove the battery and its support bracket.

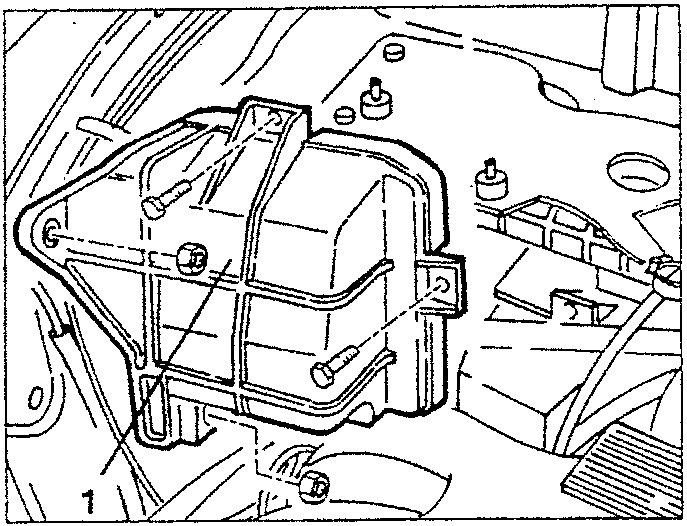

  1. Suitably turn the glow plug warming control unit and disconnect the electrical connections.
  2. Remove the glow plug warming control unit complete with bracket, if necessary separate them on the bench.

A.B.S. CONTROL UNIT

REMOVAL/REFITTING (Boxer versions)

• Disconnect the battery (-) terminal..
  - Remove the complete air cleaner (see GROUP 10).

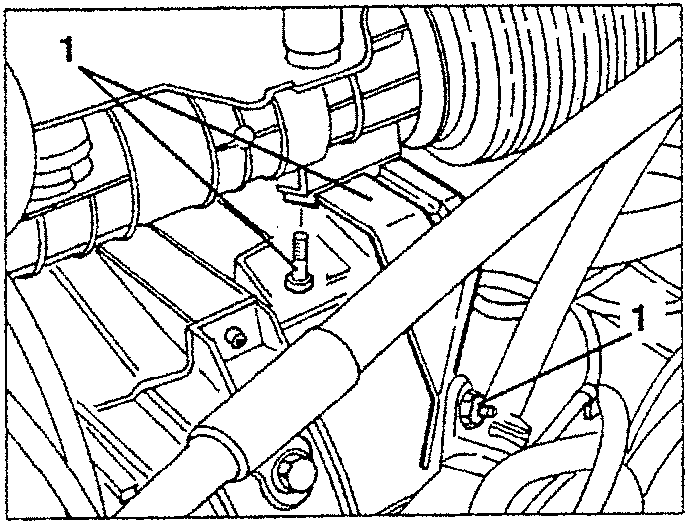

1. Remove the power steering hose support bracket.

1. Slacken the screws and fastening nuts and remove the front half box of the A.B.S. hydraulic unit.
